All Prices $USD. Contact
Us for Shipping/ Freight Costs.
Quantity Discounts Available.
|
|
|
|
|
Battery
Charger
Part #
|
Description
- 12 Volt Series, 24 Volt, 36 Volt and 48 Volt
Smart Lithium Battery Chargers
|
Lithionics
Battery Charger Price*
|
KF12V 5A,
With Display
|
Lithium ion Battery Charger for 12 Volt
lithium ion batteries.
Output: 5 Amps.
*Note: Normally we only offer these chargers
with the purchase of a Lithionics battery system.
Special handling charges apply if only purchasing
a Lithionics KF Series Charger.
- Advanced
high frequency switching made power supply
technology
- DC
output isolated from AC input
- Single
input 110VAC and 230VAC or universal input
110/230Vac, 50Hz~60HX
- Charging
parameters are insensitive to the AC in put
line voltage variations
- Completely
automatic battery charging: CC, CV, Float,
Cut-off
- 2
LEDS:
LED1 Red (power on),
LED 2 Red/Blue/Green (power on/charging/full)
- Protection:
short circuit, over voltage, over temperature,
reverse polarity
- Forced
ventilation with fans
- 100%
full load burn-in test
- Aluminum
housing, light weight, portable
- Efficiency
> 85%
- Auto-initiate
Voltage: 13.4 Volts. If you leave the charger
plugged in full-time to your battery, when
the battery drains down to 13.4 Volts, the
charger automatically switches on to fully
recharge the battery.
Click here for the PDF instructions for the
Lithionics Battery smart lithium-ion KF Series
battery chargers in a new window...
|
$157.05 USD*
To
Purchase, Please Call:
604-510-0800
|
|
|
KF12V 10A,
With Display
See
larger image at top of page...
|
Lithium ion Battery Charger for 12 Volt
lithium ion batteries With Display Output:
10 Amps.
*Note: Normally we only offer these chargers
with the purchase of a Lithionics battery system.
Special handling charges apply if only purchasing
a Lithionics KF Series Charger.
- Advanced
high frequency switching made power supply
technology
- DC
output isolated from AC input
- Single
input 110VAC and 230VAC or universal input
110/230Vac, 50Hz~60HX
- Charging
parameters are insensitive to the AC in put
line voltage variations
- Completely
automatic battery charging: CC, CV, Float,
Cut-off
- 2
LEDS:
LED 1 Red (power on),
LED 2 Red/Blue/Green (power on/charging/full)
- LED
displays charging voltage, charging current,
capacity percent, capacity, charging time,
setting and display charging end time, setting
and display pre-charging status
- Protection:
short circuit, over voltage, over temperature,
reverse polarity
- Forced
ventilation with fans
- 100%
full load burn-in test
- Aluminum
housing, light weight, portable
- Efficiency
> 85%
- Auto-initiate
Voltage: 13.4 Volts. If you leave the charger
plugged in full-time to your battery, when
the battery drains down to 13.4 Volts, the
charger automatically switches on to fully
recharge the battery.
- Dimensions:
9.5" long x 4" wide x 1 7/8" tall and weighs
approx. 4 pounds. The mesurements include
space for the cables to safely stick out.
Click here for the PDF instructions for the
Lithionics Battery smart lithium-ion KF Series
battery chargers in a new window...
|
$209.75 USD*
To
Purchase, Please Call:
604-510-0800
|
KF1220DL
20A,
With Display
See
larger image at top of page...
|
Lithium ion Battery Charger for 12 Volt
lithium ion batteries - With Display. Output:
20 Amps
*Note: Normally we only offer these chargers
with the purchase of a Lithionics battery system.
Special handling charges apply if only purchasing
a Lithionics KF Series Charger.
- Advanced
high frequency switching made power supply
technology
- DC
output isolated from AC input
- Single
input 110VAC and 230VAC or universal input
110/230Vac, 50Hz~60HX
- Charging
parameters are insensitive to the AC in put
line voltage variations
- Completely
automatic battery charging: CC, CV, Float,
Cut-off
- 2
LEDS:
LED 1 Red (power on),
LED 2 Red/Blue/Green (power on/charging/full)
- LED
displays charging voltage, charging current,
capacity percent, capacity, charging time,
setting and display charging end time, setting
and display pre-charging status
- Protection:
short circuit, over voltage, over temperature,
reverse polarity
- Forced
ventilation with fans
- 100%
full load burn-in test
- Aluminum
housing, light weight, portable
- Efficiency
> 85%
- Auto-initiate
Voltage: 13.4 Volts. If you leave the charger
plugged in full-time to your battery, when
the battery drains down to 13.4 Volts, the
charger automatically switches on to fully
recharge the battery.
- Dimensions:
11" long x 4.5" wide x 2 3/8" tall and weighs
approx. 5 pounds. The mesurements include
space for the cables to safely stick out.
-
Click here for the PDF instructions for the
Lithionics Battery smart lithium-ion KF Series
battery chargers in a new window...
|
$294.07 USD*
To
Purchase, Please Call:
604-510-0800
Click
here for the KF1220DL Lithionics Battery Charger
Spec Sheet:
|
| |
|
|
|
Battery
Charger
Part #
|
Description
- 16 Volt Series, 24 Volt, 36 Volt and 48 Volt
|
Price*
|
KF2410DL-110 / KF24V
10A,
With Display
See
larger image at top of page...
NOTE:
We also offer this model with 240 VAC input
at the same price.
|
24 Volt Lithium ion Battery Charger - With
Display
*Note: Normally we only offer these chargers
with the purchase of a Lithionics battery system.
Special handling charges apply if only purchasing
a Lithionics KF Series Charger.
- Advanced
high frequency switching made power supply
technology
- DC
output isolated from AC input
- Single
input 110VAC and 230VAC or universal input
110/230Vac, 50Hz~60HX
- Charging
parameters are insensitive to the AC in put
line voltage variations
- Completely
automatic battery charging: CC, CV, Float,
Cut-off, 2 LEDS: LED1 Red (power on), LED
2 Red/Blue/Green (power on/charging/full)
- LED
displays charging voltage, charging current,
capacity percent, capacity, charging time,
setting and display charging end time, setting
and display pre-charging status
- Protection:
short circuit, over voltage, over temperature,
reverse polarity
- Forced
ventilation with fans
- 100%
full load burn-in test, XAluminum housing,
light weight, portable
- Efficiency
> 85%
|
$294.07 USD*
To
Purchase, Please Call:
604-510-0800
|
|
NCC
Battery Chargers
|
Description
- 12 Volt Series, 24 Volt, 36 Volt and 48 Volt
|
NCC
Smart Lithium Battery Charger Price*
|
|
NCC
High Performance Battery Chargers
NCC
1500 12/ 24 Volt smart battery charger model
|
We
are now offering NCC high performance lithium-ion
battery chargers for the Lithionics lithium-ion
battery systems. We have several models to choose
from so please be sure to specify which model
and output Voltage that you need.
*Notes:
1. Normally we only offer these chargers with
the purchase of a Lithionics battery system. Special
handling charges apply if only purchasing a Lithionics
NCC Series Charger.
2. The NeverDie CANBus Charger is designed to
require a CANBus Data Connection from the NeverDie
Advanced or Standard series Battery Management
for advanced charger control so please be sure
to mention this when ordering.

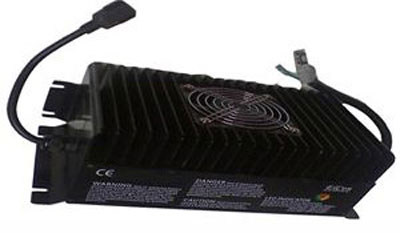

Shown
here is the NCC1500 12 Volt or 24 Volt battery
charger that outputs 40 Amps at 24 Volts DC.
Click on the images for a larger
image of the NCC 1500 12/ 24 Volt battery charger
The
NCC 1500 Model Charger is available with 25 Amps
output for 12 Volt and 40 Amps for 24 Volt applications
and sells for $1,086.64 USD*. Click
here for the PDF NCC 1500 spec/ data sheet.
These chargers can also be stacked in parallel
using a special harness that adds $119.00 USD.
-Amazing
power for it's size! 9.5" x 6.8" footprint
and 9 pounds. Max output depends on model (see
chart). Works with either 110 or 220 Volt input.
Waterproof to IP66 standards. Need more power?
These can be put these in parallel for quicker
charging!
-Charger
output for lithium is adjustable for Current,
Max Voltage, max charging time, and termination
current. Additionally a profile for lead-acid
can be enabled which adds a 3-stage charge curve
specific for that chemistry.
-CANbus
controlled is the new standard for component to
component communication. Configuration is performed
by a PC running a terminal emulation program over
a USB port. These settings are stored in EVCC
eeprom. Compatible with Windows 10, XP, 7, Vista,
Mac OS 10.7 or newer, and Android tablets version
3.2 or newer. EVCC comes with 4' cable lengths.
-Charger
also has a BMS integration feature by open or
closed input loop, replacing a head board.
-Low
Current feature (user adjustable) for lower power
outlets while charging on the road.
|
Price
for the NCC1500 charger is $1,086.64 USD*
Price includes 120 Volt AC power cord.
Configured
by the Advanced Version 9 Lithionics Battery
Management System with CANbus option. Ships
with your Lithionics lithium-ion battery system.
Additional
costs:
- 6
foot battery charger harness with Anderson
SB50 greay quick connect to 3/8" round
cable end eyelets and uses 6 AWG power cable:
$93.84 USD
- Tri-Coloured
round LED indicator pod: $76.16 USD
|
|
SPECIAL
NOTES:
CONNECTING MULTIPLE NCC High Performance
Battery Chargers
|
Connecting multiple NCC chargers to
the NeverDie BMS all depends on the type
of Ampseal used on the NeverDie
Battery Management System:
1) Corporate Ampseal (pn 75-H2FAECBR)
has the CanBus out as a Dual Weatherpack.
You can connect 1 or 2 chargers with this
type of connector:
To connect 1 charger with THIS Ampseal
you would need this CanBus cable - 75-111W-180
(15Ft) - $39.44 USD
To connect 2 chargers with THIS Ampseal
you would need this CanBus cable - 75-111-YW-72
(6ft) - $66.64 USD
2)
Marine Ampseal (pn: 75-H2FAC1BR)
To Connect 2 Chargers with THIS Ampseal
you would need the following: (CanBus
out on this Ampseal is an Ancor NMEA M12)
80-702-050 - Ancor NMEAM12 to M12
(To connect CanBus connector on Ampseal
to Ancor 4-way Tee - $61.20 USD
80-700 - Ancor 4-way Tee - $135.90
USD
80-701 - Ancor Terminator - $25.84
USD
80-228 - M12 Cap (need 2 for blanks
on 4-way) - $0.00
75-219 - Dual weatherpack to Dual
weatherpsch (to connect charger to Ancor
4-way - $61.20 x 2 = $122.40 USD (need
one of these for each charger)
To
Connect 3 Chargers with THIS Ampseal you
would need the following: (CanBus out
on this Ampseal is an Ancor NMEA M12)
80-702-050 - Ancor NMEAM12 to M12
(To connect CanBus connector on Ampseal
to Ancor 4-way Tee - $61.20 USD
80-700 - Ancor 4-way Tee - $135.90
USD
80-701 - Ancor Terminator - $25.84
USD
80-228 - M12 Cap (need 1 for blank
on 4-way) - $0.00
75-219 - Dual weatherpack to Dual
weatherpsch (to connect charger to Ancor
4-way - $61.20 x 3 = $183.60 USD (need
one of these for each charger)
To
Connect 4 Chargers with THIS Ampseal you
would need the following: (CanBus out
on this Ampseal is an Ancor NMEA M12)
80-702-050 - Ancor NMEAM12 to M12
(To connect CanBus connector on Ampseal
to Ancor 4-way Tee - $61.20 USD
80-700 - Ancor 4-way Tee - $135.90
USD
80-701 - Ancor Terminator - $25.84
USD
80-228 - M12 Cap (NONE Needed for
connecting 4 chargers) - $0.00
75-219 - Dual weatherpack to Dual
weatherpack (to connect charger to Ancor
4-way - $61.20 x 4 = $244.80 USD (need
one of these for each charger)
|
Related
Graphics and PDF Wiring Diagrams
- click on the images to view the
Lithionics PDF documents
|
75-111W-180 (15Ft)
|
75-111-YW-72
(6ft)
|
Click
here for the Two NCC
2500 Lithium-ion Battery Charger
CANbus Wiring Diagram PDF:
|
Click
here for the Three
NCC 2500 Lithium-ion Battery
Charger CANbus Overview Wiring
Diagram PDF:
|
Click
here for the Three
NCC 2500 Lithium-ion Battery
Charger CANbus Wiring Diagram
PDF:
|
|
|
|
|
NCC
High Performance Battery Chargers
NCC
2500
24 48 Volt smart battery charger models available.
|
We
are now offering NCC high performance lithium-ion
battery chargers for the Lithionics lithium-ion
battery systems. We have several models to choose
from.
*Notes:
1. Normally we only offer these chargers with
the purchase of a Lithionics battery system. Special
handling charges apply if only purchasing a Lithionics
NCC Series Charger.
2. The NeverDie CANBus Charger is designed to
require a CANBus Data Connection from the NeverDie
Advanced or Standard series Battery Management
for advanced charger control so please be sure
to mention this when ordering.
Shown
here is the NCC2500 48 Volt battery charger that
outputs 25 Amps at 48 Volts DC (up to 35 Amps
with 220VAC power supply).
Click on the images for a larger
image of the NCC 2500 Volt battery charger and
specifications
Click
here for the PDF NCC 2500 spec/ data sheet.
These chargers can also be stacked in parallel
using a special harness that adds $119.00 USD.
This
is a popular choice for the 48 Volt battery systems
that power the Elco
48 Volt inboard and outboard electric marine motors.
-Amazing power for it's size! 10.8" x 10.3"
footprint and 12 pounds. Max output depends on
model (see chart). Works with either 110 or 220
Volt input. Waterproof to IP66 standards. Need
more power? These can be put these in parallel
for quicker charging!
-Charger
output for lithium is adjustable for Current,
Max Voltage, max charging time, and termination
current. Additionally a profile for lead-acid
can be enabled which adds a 3-stage charge curve
specific for that chemistry.
-CANbus
controlled is the new standard for component to
component communication. Configuration is performed
by a PC running a terminal emulation program over
a USB port. These settings are stored in EVCC
eeprom. Compatible with Windows 10, XP, 7, Vista,
Mac OS 10.7 or newer, and Android tablets version
3.2 or newer. EVCC comes with 4' cable lengths.
-Charger
also has a BMS integration feature by open or
closed input loop, replacing a head board.
-Low
Current feature (user adjustable) for lower power
outlets while charging on the road.
|
Price
for the NCC2500 charger is $1,086.64 USD*.
Price
includes 120 Volt AC power cord.
Configured
by the Advanced Version 9 Lithionics Battery
Management System with CANbus option. Ships
with your Lithionics lithium-ion battery system.
Additional
costs:
- 6
foot battery charger harness with Anderson
SB50 greay quick connect to 3/8" round
cable end eyelets and uses 6 AWG power cable:
$93.84 USD
- Tri-Coloured
round LED indicator pod: $76.16 USD
|
Here
are some links to NCC multi-charger
setup wiring diagrams illustrating
how the CANbus connections are made to
the Lithionics Battery NeverDie Battery
Management System (BMS) box:
|
Click
here for the Two NCC 2500 Lithium-ion
Battery Charger CANbus Wiring Diagram
PDF:
Click
here for the Three NCC 2500 Lithium-ion
Battery Charger CANbus Wiring Diagram
PDF:
|
|
|
|
Lithionics
Battery ACR
Click
on the PDF logo below for the full details
on the Lithionics ACR:
|
Below
is a functional diagram showing the typical
components of a system where ACR is used
to bridge Chassis and House batteries.
|
Automatic
Combiner Relay Controller (ACR) Applications
Overview
An
Automatic Combiner Relay (ACR) is often
used in vehicle applications such as RVs,
Work Trucks, Marine vessels, etc. to allow
charging separate Chassis and House batteries
from common charge sources such as an engine
alternator, inverter/charger, solar. In
a typical vehicle the chassis battery is
reserved for engine starting, while the
house battery is used for “hotel” (or house
loads) or work-related loads. Normally,
when the engine is running, the chassis
battery is charging, but when the vehicle
is stationary and connected to the power
grid, the house battery is charging. Our
intelligent ACR allows customers to take
advantage of all situations to keep both
batteries charged, while keeping them separate
when charging is not available or not desirable.
Lithium
batteries have an advantage of absorbing
as much charge current as possible during
the bulk charge stage, which could overheat
and potentially damage stock engine alternators,
so our intelligent ACR reduces the duty
cycle and allows cooling periods. At the
same time, a lithium battery requires charge
termination when fully charged, so our ACR
keeps it disconnected after the charge cycle
is completed. Read more in the PDF below...
|
$498.90
USD with Contactor
|
|
|
|
Sterling
Power DC Battery Chargers - can be interfaced/
connected with the Lithionics BMS option "FCC"
for alternator field circuit control.
|
|
|
|
|
|
|
|
Sterling
Power BB1230 12 Volt to 12 Volt DC battery
to battery charger. 30 Amps output.
Price: $406.64 USD
|
Sterling
Power BB1260 12 Volt to 12 Volt DC battery
to battery charger. 60 Amps output.
Price: $542.64 USD
|
Sterling
Power BB242435 24 Volt to 24 Volt DC battery
to battery charger. 35 Amps output.
|
Summary
Sterling Power BB1230 12 Volt to 12
Volt DC battery to battery charger "Custom
Charge Profile Programming Instructions"
for the Lithionics 12 Volt, 315 Amp
hour GTX internal BMS battery:
-
Step 1: Connect the Sterling Device
to a 12 Volt power source/ battery
with appropriate fuse.
- Step
2: Remove the access cover at the
bottom of the charger to expose the
two programming buttons. Note:
Do not quickly press the selection
buttons as they are a bit slow to
respond.
- Step
3: Press and hold down both buttons
for between 10 and 20 seconds - we
recommend 15 seconds.
- Step
4: This override all factory settings
and allow us to use the "Custom
Settings". With the right button
press it to move the illuminated LED
all the way down to the bottom which
is a hard to see faint red LED "Custom"
position.
- Step
5: Press both buttons for 1 second.
- Step
6: Now we set the bulk/ absorb charge
Voltage. Press the right button until
the two LEDs labelled 14.6 and 14.2
Volts are illuminated (LEDs #18 and
19). This position indicates our desired
Voltage of 14.4 Volts. Press both
buttons for 1 second to lock it in.
- Step
7: Using the right button, navigate
to the LED # 20 that says 13.8 Volts.
Press both buttons for 1 second. This
sets an intermediary float Voltage.
- Step
8: Use the right button to illuminate
the LED # 6 labelled 13.4 Volts. This
is the float Voltage that we want.
Press both buttons for 1 second to
lock it in.
- Step
9: Now we need to set the minimum
absorption time. Use the right button
to scroll to LED #4 (LED 22) = 120
minutes. Press both buttons for 1
second to lock it in.
- Step
10: Now we set the maximum absorption
time. Use the right button to select
360 minutes which is LED #8. Press
both buttons for 1 second.
- Step
11: If you like, in this step you
can program the low temperature shutoff
function of the Sterling Charger.
For the Lithionics batteries we suggest
that you set this to +3 or +4 Celsius.
This will turn off the Sterling Charger
in cold and very cold temperatures
so that it does not trigger the Lithionics
Battery cold temperature intervention
that will shut off power to the Lithionics
Battery if there is battery charging
detected and the battery is at or
below 0 Celsius.
- We
are now done and the green LEDs should
flash and the device should beep and
reboot.
- NOTE:
The buttons are a little tricky to
work with so we suggest programming
the unit on a workbench and you may
have to go through the process a couple
times. Click on the PDF logo below
for a copy of the instructions.
|
|
|
Click
on the PDF logo for a copy of
the instructions.
|
|
|
|
|
STERLING
POWER SPECIALLY MADE 51 VOLT to 12 VOLT DC BATTERY
TO BATTERY CHARGER
Sterling
Power BB4812 48 to 51 Volt to 12 Volt DC battery
to battery charger. 50 Amps output.
For use in RV's and Marine applications where
you have a 48 Volt or 51 Volt Lithionics (or
conventional battery) for the house power as
well as a 12 Volt Lithionics accessory or engine
start battery system and want a method to charge
the 12 Volt battery system from the bigger house
battery system.
1
unit in stock.
Regular Price: $1,990.00 USD
ON
SALE FOR $1,500.00 USD
Inquiries:
Email
Us at siteinfo@shaw.ca or call 604-510-0800.
Ships from Langley, BC, Canada.
|
|
Elcon
PFC Battery Chargers
|
Description
- 12 Volt Series, 24 Volt, 36 Volt and 48 Volt
|
Elcon
Lithium Battery Charger Price*
|
PFC1500 |
High Frequency UltraLite Charger. Only 13 lbs.
Nominal Voltage: 24 to 72V.
Charging Amps at 110VAC Input: 14 to 40A.
Charging Amps at 220VAC Input: 16 to 40A.
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply
the matching SB50 connector so you can make
your own cables to go to your battery system.
We can also supply spring loaded clamp style
battery clamps for an extra $20.00 USD.
2. We can also include what is called an HVC
interlock cable that connects to the BMS box
for $69.00 USD. This is a modular connector
that plugs in and allows the PFC charger to
stay plugged in. It will turn off when the batteries
are charged, but if you drain them down again,
the PFC charger will re-initiate and charge
them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange
Anderson SB50 connector plus 3 feet of cable
that have 3/8" round hole cable end eyelets
on the end. When you order this, the HVC interlock
cable is free of charge.
4. Custom Charger Harness: We can provide a
custom 6 foot long charger harness with a special
Anderson SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$715.50 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
|
|
|
|
IMPORTANT
NOTE FOR PFC CHARGERS USED WITH LITHIONICS LITHIUM-ION
BATTERIES:
On
the new generation of PFC chargers and NeverDie
BMS, Lithionics uses what we call "the PFC
interlock circuit", which is included at
no charge to your order when we use algorithm
521a.
1.
Master-Slave: either the BMS or the charger will
be the master and the other a slave. Without the
HVC interlock wired connection, the charger becomes
the master, able to force-off the BMS during possible
balancing of the cells at the end of the charge
cycle. Using the HVC interlock turns the BMS into
the master, whereby the BMS forces the charger
off during balancing and the system stays "on"
and ready.
2.
Optimization: see a plot of 521a. It rises 2 times
to super-optimize cell balancing and total capacity.
Running this close to the HVC alarm event is tricky,
but the HVC interlock makes it safe and simple
for the system to balance.
-
If the system is used frequently, this is not
as critical. But, when the system sits for a while
not used, cells drift out of balance. It took
Lithionics months to perfect this algorithm, and
that's what the whole approach is about: closed-loop
control and reaching perfection with no nuisance
tripping of the BMS.
|
|
Battery
Charger
Part #
|
Description
- 12 Volt Series, 24 Volt, 36 Volt and 48 Volt
|
Elcon
Lithium Battery Charger Price*
|
PFC1500-12
|
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments. Sealed to IP44 Standards.
Nominal Voltage: 12V.
Charging Amps: 40A.
-
Water
resistant chargers for Marine, Golf Cart,
Outdoor Environments
-
Advanced
high frequency switching design with 92% typical
efficiency
-
Fully
sealed enclosure provides improved reliability
in demanding environments
-
>
0.98 Power Factor minimizes utility surcharges
and maximizes use of AC power
-
Lithionics
approved battery charge algorithm
-
Field
programmable from 1S to 10S
-
Remote
on/off via interlock function
-
The
internal CPU employs advanced charging management
algorithm
-
Passive
cooling heatsink design
-
Thermal
Self-Protection, High and Low Voltage Protection,
Short-Circuit Protection
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson SB50
modular connector on the end of the positive and
negative charging cables. We can supply the matching
SB50 connector so you can make your own cables to
go to your battery system. We can also supply spring
loaded clamp style battery clamps for an extra $20.00
USD.
2. We can also include what is called an HVC interlock
cable that connects to the BMS box for $69.00 USD.
This is a modular connector that plugs in and allows
the PFC charger to stay plugged in. It will turn
off when the batteries are charged, but if you drain
them down again, the PFC charger will re-initiate
and charge them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange Anderson
SB50 connector plus 3 feet of cable that have 3/8"
round hole cable end eyelets on the end. When you
order this, the HVC interlock cable is free of charge.
4. Custom Charger Harness: We can provide a custom
6 foot long charger harness with a special Anderson
SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and disconnecting
of the PFC charger. |
$684.05 USD
To
Purchase, Please Call:
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC1500-24
|
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments. Sealed to IP44 Standards.
Nominal Voltage: 24V.
Charging Amps: 40A.
Click on image for a larger pic
-
Water
resistant chargers for Marine, Golf Cart,
Outdoor Environments
-
Advanced
high frequency switching design with 92%
typical efficiency
-
Fully
sealed enclosure provides improved reliability
in demanding environments
-
>
0.98 Power Factor minimizes utility surcharges
and maximizes use of AC power
-
Lithionics
approved battery charge algorithm
-
Field
programmable from 1S to 10S
-
Remote
on/off via interlock function
-
The
internal CPU employs advanced charging management
algorithm
-
Passive
cooling heatsink design
-
Thermal
Self-Protection, High and Low Voltage Protection,
Short-Circuit Protection
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply the
matching SB50 connector so you can make your own
cables to go to your battery system. We can also
supply spring loaded clamp style battery clamps
for an extra $20.00 USD.
2. We can also include what is called an HVC interlock
cable that connects to the BMS box for $69.00
USD. This is a modular connector that plugs in
and allows the PFC charger to stay plugged in.
It will turn off when the batteries are charged,
but if you drain them down again, the PFC charger
will re-initiate and charge them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange Anderson
SB50 connector plus 3 feet of cable that have
3/8" round hole cable end eyelets on the
end. When you order this, the HVC interlock cable
is free of charge.
4. Custom Charger Harness: We can provide a custom
6 foot long charger harness with a special Anderson
SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$687.94 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
|
|
PFC1500-36
|
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments. Sealed to IP44 Standards.
Nominal Voltage: 36V.
Charging Amps: 25A.
-
Water
resistant chargers for Marine, Golf Cart,
Outdoor Environments
-
Advanced
high frequency switching design with 92%
typical efficiency
-
Fully
sealed enclosure provides improved reliability
in demanding environments
-
>
0.98 Power Factor minimizes utility surcharges
and maximizes use of AC power
-
Lithionics
approved battery charge algorithm
-
Field
programmable from 1S to 10S
-
Remote
on/off via interlock function
-
The
internal CPU employs advanced charging management
algorithm
-
Passive
cooling heatsink design
-
Thermal
Self-Protection, High and Low Voltage Protection,
Short-Circuit Protection
Note:
48 Volt Version also available at same price.
Use Part #: PFC1500-48
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply
the matching SB50 connector so you can make
your own cables to go to your battery system.
We can also supply spring loaded clamp style
battery clamps for an extra $20.00 USD.
2. We can also include what is called an HVC
interlock cable that connects to the BMS box
for $69.00 USD. This is a modular connector
that plugs in and allows the PFC charger to
stay plugged in. It will turn off when the batteries
are charged, but if you drain them down again,
the PFC charger will re-initiate and charge
them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange
Anderson SB50 connector plus 3 feet of cable
that have 3/8" round hole cable end eyelets
on the end. When you order this, the HVC interlock
cable is free of charge.
4. Custom Charger Harness: We can provide a
custom 6 foot long charger harness with a special
Anderson SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$687.94 USD
To
Purchase, Please Call:
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC1500-12HS |
SUPER HIGH SPEED CHARGE RATES. 110
& 220 Volt Input Capable.
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments.
Nominal Voltage: 12V.
Charging Amps: 40A.
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply the
matching SB50 connector so you can make your own
cables to go to your battery system. We can also
supply spring loaded clamp style battery clamps
for an extra $20.00 USD.
2. We can also include what is called an HVC interlock
cable that connects to the BMS box for $69.00
USD. This is a modular connector that plugs in
and allows the PFC charger to stay plugged in.
It will turn off when the batteries are charged,
but if you drain them down again, the PFC charger
will re-initiate and charge them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange Anderson
SB50 connector plus 3 feet of cable that have
3/8" round hole cable end eyelets on the
end. When you order this, the HVC interlock cable
is free of charge.
4. Custom Charger Harness: We can provide a custom
6 foot long charger harness with a special Anderson
SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$792.35 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC1500-24HS |
SUPER HIGH SPEED CHARGE RATES. 110
& 220 Volt Input Capable.
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments.
Nominal Voltage: 24V.
Charging Amps: 40A.
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply the
matching SB50 connector so you can make your own
cables to go to your battery system. We can also
supply spring loaded clamp style battery clamps
for an extra $20.00 USD.
2. We can also include what is called an HVC interlock
cable that connects to the BMS box for $69.00
USD. This is a modular connector that plugs in
and allows the PFC charger to stay plugged in.
It will turn off when the batteries are charged,
but if you drain them down again, the PFC charger
will re-initiate and charge them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange Anderson
SB50 connector plus 3 feet of cable that have
3/8" round hole cable end eyelets on the
end. When you order this, the HVC interlock cable
is free of charge.
4. Custom Charger Harness: We can provide a custom
6 foot long charger harness with a special Anderson
SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$792.35 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC1500-36HS |
SUPER HIGH SPEED CHARGE RATES. 110
& 220 Volt Input Capable.
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments.
Nominal Voltage: 36V.
Charging Amps: 33A.
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply the
matching SB50 connector so you can make your own
cables to go to your battery system. We can also
supply spring loaded clamp style battery clamps
for an extra $20.00 USD.
2. We can also include what is called an HVC interlock
cable that connects to the BMS box for $69.00
USD. This is a modular connector that plugs in
and allows the PFC charger to stay plugged in.
It will turn off when the batteries are charged,
but if you drain them down again, the PFC charger
will re-initiate and charge them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange Anderson
SB50 connector plus 3 feet of cable that have
3/8" round hole cable end eyelets on the
end. When you order this, the HVC interlock cable
is free of charge.
4. Custom Charger Harness: We can provide a custom
6 foot long charger harness with a special Anderson
SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$792.35 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC1500-48HS |
SUPER HIGH SPEED CHARGE RATES.
110 & 220 Volt Input Capable.
Waterproof Charger for Marine, Golf Carts and
Outdoor Environments.
Nominal Voltage: 48V.
Charging Amps: 80 Amps at 240 VAC, 40 Amps at
120VAC.
NOTES
FOR PFC CHARGERS:
1.
These typically come equipped with an Anderson
SB50 modular connector on the end of the positive
and negative charging cables. We can supply
the matching SB50 connector so you can make
your own cables to go to your battery system.
We can also supply spring loaded clamp style
battery clamps for an extra $20.00 USD.
2. We can also include what is called an HVC
interlock cable that connects to the BMS box
for $69.00 USD. This is a modular connector
that plugs in and allows the PFC charger to
stay plugged in. It will turn off when the batteries
are charged, but if you drain them down again,
the PFC charger will re-initiate and charge
them back up.
3. We can also supply a standard charger harness
for $99.00 USD that has the matching orange
Anderson SB50 connector plus 3 feet of cable
that have 3/8" round hole cable end eyelets
on the end. When you order this, the HVC interlock
cable is free of charge.
4. Custom Charger Harness: We can provide a
custom 6 foot long charger harness with a special
Anderson SBS75X
to 3/8" cable end eyelets with an integrated
HVC interlock for $133.50 USD. This is especially
helpful when you want to quick connecting and
disconnecting of the PFC charger.
|
$895.70 USD
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
|
|
PFC2000 |
Lithium ion Battery Charger. Required for charging
marine batteries.
Nominal Voltage: 36 to 72V.
Charging Amps at 110VAC Input: 19 to 38A.
Charging Amps at 220VAC Input: 23 to 40A.
|
$789.45 USD |
PFC2000 + |
High Performance Lithium ion Battery Charger.
Required for charging marine batteries. A great
choice when purchasing Elco Electric Marine Engine
Systems.
Nominal Voltage: 36 to 288 Volts. Custom programmable
at your request.
Charging Amps at 110VAC Input: 5 to 38A.
Charging Amps at 220VAC Input: 6 to 40A.
Specs:
|
From $947.55 USD with AGM battery setting.
No longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries. |
|
|
Lithium ion Battery Charger. Required for charging
marine batteries.
Nominal Voltage: 24 to 72V.
Charging Amps at 110VAC Input: 17 to 37A.
Charging Amps at 220VAC Input: 29 to 40A.
Click
on the image for a larger photo in a new window.
|
From
$947.55 USD |
PFC3000
|
Super high charging rate Lithium ion Battery Charger.
Required for charging marine batteries. Sealed
Charger. For 24 Volt applications choose sub-model
TCCH-28-80.
Nominal Voltage: 24 to 72V.
Click
on the image for a larger photo in a new window.
|
From
$1,589.90 USD
To
Purchase, Please Call:
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC3000
6kW
24 Volt Rapid Charger
|
This specialty charger can output 160 Amps at
24 Volts. Super high charging rate Lithium ion
Battery Charger. Required for charging marine
batteries. Sealed Charger. For 24 Volt applications
choose sub-model TCCH-28-80.
Nominal Voltage: 24 to 72V.
Custom
programming included and can come equipped with
10 different charge profiles. Internal CAN bus
communications. External CAN bus communications
possible.
|
$2,647.50 USD
To
Purchase, Please Call:
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC5000
|
Super high charging rate Lithium ion Battery Charger.
Required for charging marine batteries. This charger
has dual cooling fans.
Nominal Voltage: 24 to 72V.
Click
on the image for a larger photo in a new window.
|
Call for Details...
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
PFC5000
10kW
48 Volt Rapid Charger
|
This specialty charger can output 160 Amps at
48 Volts. Super high charging rate Lithium ion
Battery Charger. Required for charging marine
batteries. Sealed Charger.
Nominal Voltage: 24 to 72V.
Custom
programming included and can come equipped with
10 different charge profiles. Internal CAN bus
communications. External CAN bus communications
possible.
Perfect for fast charging Elco 48 Volt electric
outboard motor battery systems.
|
Call for Details...
604-510-0800
No
longer available for use with Lithionics lithium-ion
battery systems but is available for use with
AGM and other types of batteries.
|
|
|
|
|
|
|
|
|
|
|
MORE POWER
