Standard
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight
Costs.
|
|
|
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Size
|
Lithionics Battery Price*
|
Lithionics

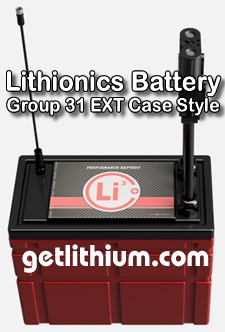

Battery 12 Volt Lithium-ion Battery Model 12V 110A
G31-EXT-DIN-Module
Lithionics
Battery 12 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
RV,
Cars/ Light
Trucks, Marine
|
12.8
|
|
264
|
|
30
Lbs
|
13
" x 6.8" x 10.98" overall height plus the DIN cables.
|
|
|
|
No
Longer Available.
Try
the 130Ahr,
320
Ahr or 630
Ahr lithium batteries with internal BMS
12V
110A G31-EXT-DIN MODULE: A highly engineered, designed
and assembled in the USA, lightweight, high performance
Standard Series Lithionics Battery 12 Volt 110 Amp hour
capacity Group 31 style case Lithium Ion Battery System
with 264 Reserve Capacity (RC) minutes and 1,408 Total Watt
Hours capacity. Up to 1,100 Cranking Amps.
This
Lithionics Standard Series Battery has a fast "1C"
Charging Rate.
This
battery can be used for a wide variety of RV and Truck Engines
(gas and diesel up to 5.7 Liters) as well as for Marine
Engine Starting (including Outboard Marine Engines) on sailboats
and yachts. Please discuss temperature extremes with us
before ordering.
This
battery is not a Deep Cycle Battery, rather it is designed
as a Primary Engine Starting Battery or Main Vehicle Battery.
NeverDie Battery Management System is not included -
the use of an external BMS box is required. Click
here to see the NeverDie Battery Management System (BMS)
page, options and pricing.
Alternator
Charging:
The long-term effects of constant charging from "unregulated/
controlled alternators" are indicating possible degradation
of lithium-ion batteries. As such, we only recommend directly
connecting a Lithionics battery system to a high quality
alternator that connects to either a Wakespeed or Balmar
branded external Voltage Regulator that can offer proper
3 stage charging AND the Lithionics BMS option "FCC"
can turn off the alternator when the lithium battery is
full. For alternators that are "shared" and need
to charge a lead-acid/ AGM start battery as well as the
Lithionics battery we recommend using a high quality DC
to DC Battery Charger like those made by Sterling Power
(ignition enabled option) that will connect to your start
battery and feed the Lithionics Battery. Please consult
Pinnacle Innovations and we will be happy to specify how
best to achieve alternator charging and we can also supply
any parts needed - such as DC to DC Battery Chargers, Wakespeed
or Balmar branded external Voltage Regulators and high efficiency
battery isolators by Perfect
Switch. Contact Us
Page...
OPTIONS:
EXTREME CONDITIONS: We also sell a product called
"Dynaliner"
that is an external thermal protective wrap with a
K Value of 0.3.
This "Dynaliner" material is available
from 0.125" to 0.5" thick
and is non-conductive. This option is recommended for extreme
temperature situations for surrounding the battery compartment.
PRICING:
2.25% Discount For Wire Transfer, Cheque, Debit or Cash
Payments.
Fleet Pricing, and Volume Discounts also
available.
Prices may be lower for in-stock items or for multiple
items
ordered in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.
Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt
applications,
2.5 Ahr in 24 Volt applications and 3.5 Ahr in
48
Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion
battery systems:
Charge
14.4 Volts. Float 13.4 Volts.
High
Voltage Cutoff (HVC) 14.8 Volts.
Low
Voltage Battery Cut Out: 12.1 Volts
For Lithionics 24 Volt lithium-ion
battery systems:
Charge
28.8 Volts. Float 26.8 Volts.
High
Voltage Cutoff (HVC) 29.6 Volts.
Low
Voltage Battery Cut Out: 24.2 Volts
For Lithionics 48 Volt lithium-ion
battery systems:
Charge
54.0 Volts. Float 50.3 Volts.
High
Voltage Cutoff (HVC) 55.5 Volts.
Low
Voltage Battery Cut Out: 45.4 Volts
For Lithionics 51 Volt lithium-ion
battery systems:
Charge
57.6 Volts. Float 53.6 Volts.
High
Voltage Cutoff (HVC) 59.2 Volts.
Low
Voltage Battery Cut Out: 48.4 Volts
Set the "Absorption Time"
to 30 minutes.
Lithionics Battery charging PDF
For modern, programmable 3rd party
inverter/chargers
etc., we recommend using
"Custom Settings"
- if there
is no provision please Contact
Us.
Lithionics Battery offers several different types of
AC and DC
powered
lithium-ion battery chargers that have been tested
and
work well with the Lithionics batteries.
Click
here
for details on the Lithionics Battery approved
Battery
Chargers...
- Lithionics
Battery Lithium Ion Battery Life:
- 5,800
cycles at 50% Depth of Discharge
- 3,000
cycles at 80% Depth of Discharge
- 2,300
cycles at 90% Depth of Discharge
Note: At the end of the cycles the battery will
still work fine and can last many more years but
may have lost up to 20% of the original Amp hour
capacity.
- Our
batteries typically have a 10 Year+ Service Life
- Warranty
Page...
- Lithium
Ion Battery Industry SAFETY LEADER: Approved to U.N.
International D.O.T. 38.3 for Lithium - many BMS and
battery models also UL approved.
- NEVERDIE
SYSTEM NOTES AND FREQUENCY OF CHARGING:
A.) The "Pushbutton NeverDie System" has a
continuous Amperage draw of 2 Milliamps.
B.) Some of our Lithionics Battery lithium-ion batteries
can be ordered with either "Pushbutton NeverDie
System" (A) which is the BMS built into the battery
or can be ordered with the "External BMS box Pushbutton
NeverDie System" (B). As such, our smaller batteries
will likely need some recharging every 2-4 months to
compensate for the small amperage draw (.002 Amp) of
the NeverDie System. Please be sure to ask about this
at time of ordering or check the Lithionics Storage
Procedure Guidelines.
If your application also has a small "Parasitic
Drain" (clock, alarm system etc.), this must also
be factored in and the battery charged in accordance
with the total amperage draw.
Lithionics Battery lithium-ion batteries are 97% EFFICIENT FOR SOLAR POWER. Compare that with only 55% to 85% efficiency
for other types of batteries including deep-cycle lead acid
batteries. Lithionics Battery lithium-ion batteries also
charge from 2 to 10+ times faster than other batteries,
which gives you more use out of your lithium-ion battery.
Visit our
Solar Power page...
We also
offer a great selection of solar panels suitable for RV's,
yachts and sailboats of all sizes - including durable flexible
solar panels that can be walked on.
Battery
Meters/ State-of-Charge
Meters and Gauges are also available at additional cost.
For multiple battery systems, our Neverdie Control Box may
also be required.
|
Pinnacle
Innovations is a Systems Integration Company offering
Lithionics Battery lithium-ion batteries, advanced electrical
components/ solar systems for RV/ Marine/ Off-grid and
Elco electric/ hybrid-electric marine propulsion systems
for sale in the USA, Internationally and all across
Canada including the following cities (and other Canadian
cities): Toronto, Montreal, Calgary, Ottawa, Edmonton,
Mississauga, Winnipeg, Vancouver, Brampton, Hamilton,
Quebec City, Surrey, Langley, Laval, Halifax, London,
Markham, Vaughan, Gatineau, Longeil, Burnaby, Saskatoon,
Kitchener, Windsor, Regina, Richmond, Richmond Hill,
Oakville, Abbotsford, Chiliwack, Burlington, Sudbury,
Sherbrooke, Oshawa, Barrie, Kingston, Cambridge, Coquitlam,
Langley, Whitby, Guelph, Kelowna, Saanich, Victoria,
Nanaimo, Thunder Bay, St. John's, Red Deer, Kamloops,
Fort MacMurray, Fredericton, Grande Prairie, North Bay,
Whistler, Prince George, Pickering, North Vancouver,
Aurora, Shawinigan, Moncton, Saint John, Lethbridge
& more. International Orders are also possible
and are Sales Tax Exempt. |
|
|
|
|
Need
Accessories for Your Lithionics Lithium Ion Battery?
We got you covered...
|
|
|
-
High and Low Frequency
- External & Installed Chargers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADDITIONAL NOTES:
** Working Life with batteries equipped with the NeverDie
System that
helps prevents over-discharging.
Refer to the Lithionics
Cycle Life Chart for more details.
"CA" means Continuous Cranking Amps
"CCA" means Cold Cranking Amps
"Ahr" means Amp Hours.
Note: 1 Lithium Ion AHr = 2 Lead Acid AHr in
12 Volt Applications
- the advantage is higher in higher Voltage Lithionics
lithium-ion
battery applications.
Please check our battery sizes to ensure correct
fit Before Ordering
NEVERDIE system included
where shown.
NEVERDIE system option
available at extra cost: Click
here to visit the NeverDie Battery Management Systems
page for full details and pricing
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
You
may ask "What is NEVERDIE?"
NeverDie is
an option that can be ordered with ALL of our batteries at
extra cost. This is a Low Voltage Cutoff (LVC) circuitry built
into the battery that will allow you to use the electricity
in your deep cycle lithium-ion battery with the engine off
and the battery will automatically enter "sleep mode"
once the battery is drawn down to typically 90% discharged.
This means you can use approximately 90% of the energy in
the battery before it enters "sleep mode". This
helps to prevent accidental overdischarging.
If
you order the NEVERDIE Pushbutton, a simple
button will be located on the top of your battery to manually
shut down the battery for storage or to "wake up"
the battery from sleep mode.
|
|
|
|
|
| |
|
|
|
|
|
