GTX
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight Costs.
|
|
|
|
|
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Dimensions
|
Price*
|
|
GTX
12V 315A
E2107-CS200
Lithionics
Battery 12 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
Mercedes
Benz Sprinter Vans, Off-Grid, RV, Industrial Energy Systems,
Trucks, Solar Power Systems
|
12.8
|
4,032
|
|
315
|
68
Lbs
|
20.3" x 6.4" x 10" overall height. Add extra height
for cabling.
|
|
|
|
|
GREAT
NEW LOWER PRICE: Was $4,758.64, now $4,499.00 USD AND new
price includes the internal Lithionics automated heater
system AND the Bluetooth SOC/ Battery Monitor System (over
a $500.00 USD value at no extra charge).
A
great compact high capacity single 12 Volt lithium-ion battery
with 315 Amp hours capacity. A great, lightweight lithium
ion battery with 4,032 Total Watt Hours capacity and built-in
CS series 200 constant Amp BMS (250 Amps for short periods).
High cranking Amps means this is a dual purpose deep cycle
and engine cranking LiFePO4 battery (can start many RV generators
in the 2500 to 3800 Watt range). Please inform us of the
intended orientation of the battery before ordering.
|
Warranty
Approved Wiring Diagrams for 1 or 2 of the GTX 12
Volt 315 Amp Hour Internal BMS Lithionics Batteries:
|
Single Lithionics lithium-ion battery with Kisae 3,000
Watt inverter-charger |
Single
Lithionics lithium-ion battery with Victron Multiplus
3,000 kVA inverter-charger |
Single
Lithionics lithium-ion battery with Victron Multiplus
II 3,000 kVA inverter-charger |
|
|
|
|
Single
Lithionics lithium-ion battery with Victron Multiplus
2,000 kVA inverter-charger |
Single
Lithionics lithium-ion battery with Xantrex Freedom
Pro XC 3,000 Watt inverter-charger |
Single
Lithionics lithium-ion battery with Xantrex Freedom
Pro XC 2,000 Watt inverter-charger |
|
|
|
|
Two Lithionics lithium-ion batteries with Kisae 3,000
Watt inverter-charger |
Two
Lithionics lithium-ion batteries
with Victron Multiplus 3,000 kVA inverter-charger |
Two
Lithionics lithium-ion batteries
with Victron Multiplus II 3,000 kVA inverter-charger |
|
|
|
|
| |
Two
Lithionics lithium-ion batteries
with Xantrex Freedom Pro XC 3,000 Watt inverter-charger |
|
IMPORTANT
NOTES:
- Although
it is recommended to use two of these batteries in parallel
to run a 3,000 Watt inverter-charger, if using one of
these batteries connected to a 3,000 Watt inverter-charger
(such as Victron Multiplus, Xantrex Freedom PRO XC,
Kisae 3kW) it is required to use at least 2 feet of
2/0 DC power cabling between the inverter-charger and
the bus barsas well as at least 2 feet of 2/0 DC power
cabling between the battery system and the bus bars.
Please do not use the bigger 4/0 DC power cable. The
smaller power cable helps to dampen the big inverter-charger's
"in-rush currents" and will help eliminate
inverter startup errors that can happen in rare instances.
In addition, you will need to install a mechanical battery
disconnect switch rated at 350 constant Amps or higher
between the battery and the bus bar as well as between
the bus bar and the inverter-charger.
- When
using one or two of these batteries AND a 3,000 Watt
or 3,000 kVA inverter-charger it is required to have
two 400 Amp or higher rated manual battery/ inverter
disconnect switches. One installs between the battery(s)
and the positive bus bar and one installs between the
positive bus bar and the inverter. In addition, we require
either an MRBF terminal block fuse or Class T fuse connected
to/ from the positive battery terminal(s) to the positive
bus bar and either a Class T or MEGA Fuse must be installed
between the positive bus bar and the inverter. Pinnacle
Innovations/ getlithium.com can supply our valued Clients
with all of these installation components at minimal
additional cost.
- In
addition, please follow these operational instructions
when using one or two of these batteries with either
a 2,000 or 3,000 Watt inverter-charger:
- Shut-Down:
- First,
turn off major 120 VAC inverter loads.
- Next,
turn off the inverter-charger.
- Next,
turn off the inverter disconnect switch.
- Next,
turn off the battery disconnect switch.
- Finally,
turn the battery(s) off.
- Start-Up:
- Make
sure that major 120VAC inverter loads are switched
off.
- First,
turn the battery(s) on.
- Next,
turn the master battery disconnect switch on.
- Next,
turn the inverter disconnect switch on.
- Finally,
turn on the inverter.
- NO
MARINE USE: Unfortunately
we can no longer warranty approve the use of internal
BMS Lithionics batteries like this model as well as
the 130 Amp hour and 630 Amp hour internal BMS Lithionics
batteries for Marine Applications. For Marine Applications
we always need to use battery modules with the more
robust external NeverDie Battery Management System (BMS).
- We
will be posting new and warranty approved Lithionics
installation wiring diagrams shortly.
Also
available as a 320 Amp hour battery module with aluminum
case and internal battery heater for use with external Lithionics
BMS box. Details...
ADDITIONAL
NOTES:
1. Heater Function:
When the battery is turned Off (for Winter storage etc.)
this also turns off the battery's internal heater system
so that the battery does not deplete when stored in cold
temperatures. Refer
to the Lithionics Storage Procedures PDF for storage instructions.
2. Alternator Charging:
The long-term effects of constant charging from "unregulated/
controlled alternators" are indicating possible degradation
of lithium-ion batteries. As such, we only recommend directly
connecting a Lithionics battery system to a high quality
alternator that connects to either a Wakespeed or Balmar
branded external Voltage Regulator that can offer proper
3 stage charging AND the Lithionics BMS option "FCC"
can turn off the alternator when the lithium battery is
full. For alternators that are "shared" and need
to charge a lead-acid/ AGM start battery as well as the
Lithionics battery we recommend using a high quality DC
to DC Battery Charger like those made by Sterling Power
(ignition enabled option) that will connect to your start
battery and feed the Lithionics Battery. Please consult
Pinnacle Innovations and we will be happy to specify how
best to achieve alternator charging and we can also supply
any parts needed - such as DC to DC Battery Chargers, Wakespeed
or Balmar branded external Voltage Regulators and high efficiency
battery isolators by Perfect
Switch. Contact Us
Page...
3. Although this battery can power a 3,000 Watt inverter-charger
it is really pushing the limit of the 200 constant Amp rated
internal BMS (can handle 250 Amps for short periods) as
at 3,000 Watts output the inverter can draw almost 240 Amps.
As such, we either recommend using two of the GTX 315 Amp
hour batteries or that you program the inverter's output
downwards to say 2,500 Watts.
4. We also offer an illuminated remote on/off/reset
switch that lets you control the battery from a convenient
location. It comes with 15 feet of wire - we can make that
length longer for a small additional fee. It sells for $134.64
USD.
If
you have been looking at far lower quality competitor's
100 Amp hour Group 31 style lithium batteries, you will
find that this Lithionics battery will far outperform the
competitor's Chinese B and C grade product, has far greater
safety/ usability, is equal to more than 3 of those 100
Amp hour batteries, is not just deep cycle like the competitors
(you can also use this dual purpose Lithionics battery for
engine cranking) and is priced very well in comparison.
Learn more about what to look for when comparing lithium
batteries on our "Beware
Low Cost Competitor Batteries" page.
|
Click
on the PDF logo to the right to view how this Lithionics
Battery compares to low cost/ low quality Competitor
lithium-ion batteries that just don't measure up and
lack safety.
|
|
Options:
- IONGAUGE
From $545.54 USD total.
If you plan to install two of these batteries in parallel
and/ or you want to tie the battery monitoring into your
RVC/ CANbus systems monitoring equipment you'll want to
consider this.
Full
details on our BMS page...
- Automated
Type 1 internal heating kit. Automatically uses battery
power to keep battery above 0 Celsius (turns on at 2 Celsius/
35 Fahrenheit) so it is ready for use any time. Please
discuss with us how this works. Now included in the $4,499.00
USD Base Price.
- Ampseal
connector for accessories. Price: Add $137.00 USD plus
the option leads. Part # 75-H1FCR-CS2.
- Remote
illuminated LED On/Off button with 16 feet of cable. Part
# 75-224-196. Price: Add $169.42 USD. This is a good idea
if the battery is located in a hard to reach place.
- FCC
alternator interface 15 foot extension lead for dedicated
alternator with external Balmar style Voltage regulator.
Part # 75-149-180. Price: Add $39.44 USD.

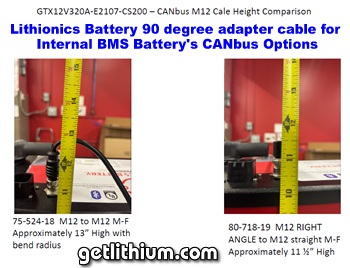

- CANbus
15 foot extension cable. Part # 75-1118-180. Price: Add
$39.44 USD. CANbus RV-C Telemetry for Silverleaf, Spyder
and Firefly multiplexing systems.
We
also offer a GTX Series 275,
555,
1,050
and a 1,260
Amp hour lithium-ion battery module.
|
Click
on the PDF logo to the right to view the Lithionics
User Guide for this GTX 12 Volt high performance Lithionics
lithium-ion battery system with built-in NeverDie
Battery Management System
|
|
|
Click
on the PDF logo to the right for the Lithionics Battery
spec sheet in PDF format.
The Lithionics Batteries are "lithium-ion"
which is the short term for lithium iron phosphate
and the chemistry name for the batteries is the super
safe and reliable "LiFePO4".
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Battery Charger Approved Settings Guide
|
|
This
extremely versatile battery can be used for a wide variety
of applications including Deep Cycle House Power for RV
and Marine applications, Solar System battery, Industrial
Project battery as well as a diesel engine cranking battery
for Truck Engines and for Marine Engine Starting on sailboats
and yachts. Internal NeverDie Battery Management System
(BMS) rated at 200 Amps included. BMS
details page...
This
battery is a dual-use battery: Deep Cycle Battery House
Power or as a Primary Engine Starting Battery or Main Vehicle
Battery. Lithionics lithium-ion batteries are the ideal
solution for Solar Power Harvesting and Off-Grid Electrical
Energy Storage as they harvest more energy than lead type
batteries.
OPTIONS:
This battery is available with convenient carry handles
for an additional $134.64 USD.
EXTREME CONDITIONS: We also sell a product called
"Dynaliner" that is an
external thermal protective wrap with a K Value of .3.
This "Dynaliner" material is .5"
thick and non-conductive.
This option is recommended for extreme temperature situations
for $295.50.
PRICING:
2.25% Discount For Wire Transfer, Cheque, Debit or Cash
Payments.
Fleet Pricing, and Volume Discounts also
available.
Prices may be lower for in-stock items or for multiple items
ordered
in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.
Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt applications,
2.5 Ahr in 24 Volt applications and 3.5 Ahr in 48 Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion
battery systems:
Charge
14.4 Volts. Float 13.4 to 13.6 Volts.
High
Voltage Cutoff (HVC) 15.6 Volts.
For Lithionics 24 Volt lithium-ion
battery systems:
Charge
28.8 Volts. Float 26.8 to 29.2 Volts.
High
Voltage Cutoff (HVC) 31.2 Volts.
For Lithionics 36 Volt lithium-ion
battery systems:
Charge
43.2 Volts. Float 40.2 Volts to 40.8 Volts.
High
Voltage Cutoff (HVC) 46.8 Volts.
For Lithionics 48 Volt lithium-ion
battery systems:
Charge
54.75 Volts. Float 50.25 Volts.
For Lithionics 51 Volt lithium-ion
battery systems:
Charge
58.4 Volts. Float 53.6 Volts.
For modern, programmable 3rd party
inverter/chargers etc.,
we
recommend using "Custom
Settings" - if there is no prevision
you
can try the "GEL" battery setting..
If
in doubt, please Contact
Us.
Lithionics Battery recommends Customers to purchase
one of our low-cost "KF series" smart lithium-ion
battery chargers when you purchase one of our smaller "Engine
Starting" lithium-ion batteries.
Click
here
for details on the KF series Battery Chargers...
- Lithionics
Battery Lithium Ion Battery Life:
- 5,800
cycles at 50% Depth of Discharge
- 3,000
cycles at 80% Depth of Discharge
- 2,200
cycles at 90% Depth of Discharge
Note: At the end of the cycles the battery will
still work fine and can last many more years but
may have lost up to 20% of the original Amp hour
capacity.
- Our
batteries typically have a 10 Year+ Service Life
- Warranty
Page...
- Lithium
Ion Battery Industry SAFETY LEADER: Approved to U.N.
International D.O.T. 38.3 for Lithium - many BMS and
battery models also UL approved.
- NEVERDIE
SYSTEM NOTES AND FREQUENCY OF CHARGING:
A.) The "Pushbutton NeverDie System" has a
continuous Amperage draw of 2 Milliamps.
B.) Some of our Lithionics Battery lithium-ion batteries
can be ordered with either "Pushbutton NeverDie
System" (A) which is the BMS built into the battery
or can be ordered with the "External BMS box Pushbutton
NeverDie System" (B). As such, our smaller batteries
will likely need some recharging every 2-4 months to
compensate for the small amperage draw (.002 Amp) of
the NeverDie System. Please be sure to ask about this
at time of ordering or check the Lithionics Storage
Procedure Guidelines.
If your application also has a small "Parasitic
Drain" (clock, alarm system etc.), this must also
be factored in and the battery charged in accordance
with the total amperage draw.
Lithionics
Battery lithium-ion batteries are 98% EFFICIENT FOR SOLAR
POWER. Compare that with only 55% to 85% efficiency
for other types of batteries including deep-cycle lead acid
batteries. Lithionics Battery lithium-ion batteries also
charge from 2 to 10+ times faster than other batteries,
which gives you more use out of your lithium-ion battery.
Visit our
Solar Power page...
We also
offer a great selection of solar panels suitable for RV's,
yachts and sailboats of all sizes - including durable flexible
solar panels that can be walked on.
Battery
Meters/ State-of-Charge
Meters and Gauges are also available at additional cost.
For multiple battery systems, our Neverdie Control Box may
also be required.
|
|
|
|
|
|
|
|
|
|
|
|
|
Finally,
there is a powerful, reliable alternative
to Torqeedo Electric Outboards - the new series
of Elco Electric
Outboard Motors!
|
|
Pinnacle
Innovations is a Systems Integration Company offering
Lithionics Battery lithium-ion batteries, advanced electrical
components/ solar systems for RV/ Marine/ Off-grid and
Elco electric/ hybrid-electric marine propulsion systems
for sale in the USA, Internationally and all across
Canada including the following cities (and other Canadian
cities): Toronto, Montreal, Calgary, Ottawa, Edmonton,
Mississauga, Winnipeg, Vancouver, Brampton, Hamilton,
Quebec City, Surrey, Langley, Laval, Halifax, London,
Markham, Vaughan, Gatineau, Longeil, Burnaby, Saskatoon,
Kitchener, Windsor, Regina, Richmond, Richmond Hill,
Oakville, Abbotsford, Chiliwack, Burlington, Sudbury,
Sherbrooke, Oshawa, Barrie, Kingston, Cambridge, Coquitlam,
Langley, Whitby, Guelph, Kelowna, Saanich, Victoria,
Nanaimo, Thunder Bay, St. John's, Red Deer, Kamloops,
Fort MacMurray, Fredericton, Grande Prairie, North Bay,
Whistler, Prince George, Pickering, North Vancouver,
Aurora, Shawinigan, Moncton, Saint John, Lethbridge
& more. International Orders are also possible
and are Sales Tax Exempt. |
|
|
|
|
Need
Accessories for Your Lithionics Lithium Ion Battery?
We got you covered...
|
|
|
-
High and Low Frequency
- External & Installed Chargers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADDITIONAL NOTES:
** Up to 20 Year Working Life possible with batteries
equipped with the NeverDie System
that prevents over-discharging.
"CA" means Continuous Cranking Amps
"CCA" means Cold Cranking Amps
"Ahr" means Amp Hours.
Note: 1 Lithium Ion AHr = 2 Lead Acid AHr in
12 Volt Applications
"EXT" means Extended Height battery
"RH" means Reduced Height battery
Please check our battery sizes to ensure correct
fit Before Ordering
NEVERDIE system included
where shown.
NEVERDIE system option
available at extra cost as follows:
BASE
NEVERDIE (pushbutton option and others)
ADD $185.90 USD for small Lithionics lithium-ion batteries
with 80 Amps continuous power draw. We also offer
many NeverDie options that can be built-in to any
battery as well as External NeverDie box systems.
Click here to visit the NeverDie Battery Management
Systems page. Each of these can be ordered:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
You
may ask "What is NEVERDIE?"
NeverDie is
an option that can be ordered with ALL of our batteries
at extra cost. This is a Low Voltage Cutoff (LVC) circuitry
built into the battery that will allow you to use the electricity
in your deep cycle lithium-ion battery with the engine off
and the battery will automatically enter "sleep mode"
once the battery is drawn down to typically 90% discharged.
This means you can use approximately 90% of the energy in
the battery before it enters "sleep mode". This
helps to prevent accidental overdischarging.
If
you order the NEVERDIE Pushbutton, a simple
button will be located on the top of your battery to manually
shut down the battery for storage or to "wake up"
the battery from sleep mode.
IMPORTANT
NEVERDIE NOTES: Please check with your vehicle/ vessel
manufacturer about the effects of disabling the battery. In
Marine Applications for boats that are moored, you should
determine how the NeverDie function may affect safety systems
- particularly Bilge Pump Operation. We now offer a "Dedicated
Bilge Pump" power option. Vist
the Battery Management System page for more information...
or see
the new Bilge Pump Configuration/our latest NeverDie BMS in
Marine Hybrid Magazine October 2013 Article...
|
|
|
|
|
| |
|
|
|
|
|
MORE POWER
|
1/5 WEIGHT OF LEAD-ACID
|
20 YEAR SERVICE LIFE
|
ENVIRONMENTALLY FRIENDLY
|
|
|
|
|
