erfect Switch Power-Gate single and dual rectifier solid state battery isolators
Image coming soon...

PERFECT SWITCH SOLID STATE
NON-PROGRAMMABLE OR'ING DIODES
GEN 4.1

lithium batteries spacer lithium batteries spacer lithium batteries spacer


Perfect Switch "POWER-GATE" Non-Programmable OR'ing Diodes are the Best, Most Efficient and Most Powerful Solid State Devices on the Market.
Available For Industry, Marine, RV, Cars, Trucks, Aircraft & Military Applications


All Prices $USD. Contact Us for Shipping/ Freight Costs.
Quantity Discounts Available.

Perfect Switch Power-Gate battery isolator rectifier spacer

Perfect Switch Power-Gate battery isolator rectifier spacer
Perfect Switch Non-Programmable OR'ing
OR'ing Diodes are designed to OR two sources to a single load. Ultra-low on-resistance means devices require no heat sinking and no airflow at currents up to 300 Amps. OR'ing Diodes are epoxy encapsulated in a custom ABS enclosure and are well suited for hostile environments. Both programmable and non-programmable versions are available.

Contact us to help determine which version is best suited for your application.

IMPORTANT: If you have a Balmar External Voltage Regulator connected in the system please advise so that we can program the trigger time to one minute (Balmar regulators have a 35 second delay before they power up).

POWER-GATE PRODUCT PAGES
Perfect Switch Power-Gate battery isolator rectifier spacer

Quick Specs:
Non-Programmable OR'ing Diodes (Gen 4.1)

Current Rating: 100 to 600 Amps
Surge Current: Up to 3,000 Amps
Operating Voltage: 7.5 to 36 VDC
(12 Volt and 24 Volt models available)
Voltage Drop at Max Current: 30mV to 49mV
Temperature Range: -40 to +105 C

"Medium Package" Dimensions:
7.87" x 5.13" x 1.95"
Weight: 23.5 ounces

"Large Package" Dimensions:
8.58" x 6.63" x 1.89"
Weight: 54 ounces

Pricing: From $433.00 USD*

Price Note: Add $50.00 USD* for 100 to 300 Amp devices to be made in the "Large Package" or case.

Pricing details below...





Non-Programmable OR'ing (GEN 4.1)

  • OR's two sources to a single load
  • Non-Programmable OR'ing Diodes Gen 4.1 are available in a "Medium Package" or case as well as a "Large Package" or case for higher current applications. Dimensions shown on left of page...
  • Low Voltage, High current capability
  • Industry-leading ultra-low on-state resistance
  • 99.9% efficient at maximum continuous current
  • No heat sinks or airflow required
  • No de-rating required over full temperature range
  • Fully encapsulated solid state design
  • Internationally patented arrayed MOSFET technology
  • MIL-STD-461E Compliant

Description:
POWER-GATE non-programmable OR'ing diodes are designed to selectively OR one of two sources to a load. The device will automatically conduct current from the source with higher voltage (relative to device ground) to the load. When the primary source drops below the secondary source, the device will "flip" and current from the secondary will drive the load. The orientation of the internal MOSFET arrays insures there will be no disruption in power driving the load, even when transitioning from one source to another.

If source Voltage levels are sufficiently close enough, dynamic Voltage sag/rise of one source in response to the opposing source sag/rise can cause oscillation or rapid-switching between the sources. In this case, the "Programmable" OR'ing should be considered. Contact us so we can consult engineering for assistance in determining the best options for your application.

POWER-GATE OR'ing diodes provide high performance and reliable switching without the conductive losses and leakage typical to Schottky rectifiers.

Conventional silicon and Schottky rectifiers can be economically priced, but have significant performance issues:

  • substantial Voltage drop as current passes
  • conductive losses create significant heat
  • batteries never get fully charged
  • alternator regulators always inaccurate due to diode drop

Non-Programmable OR'ing Diodes Gen 4.0 are constructed based on Perfect Switch's internationally patented large MOSFET array technology. Non-Programmable OR'ing Diodes Gen 4.0 are available in a "Medium Package" or case as well as a "Large Package" or case for higher current applications.

Questions/ Want to place an order?
Call us at 604-510-0800 or Email Us


Perfect Switch Power-Gate battery isolator rectifier spacer
Perfect Switch Power-Gate battery isolator rectifier spacer
NON-PROGRAMMABLE VS. PROGRAMMABLE OR'ING DEVICE

The non-programmable OR'ing consists essentially of two POWER-GATE single rectifiers with their cathodes tied together in a single package. It behaves exactly as one would expect when two diodes are configured in that manner, by passing current from the higher of the two sources to the common load. The primary advantage of the non-programmable OR'ing device is that it allows for nearly instantaneous switching of the load between the two sources; if the higher source suddenly experiences a decrease in voltage below that of the other, the device will immediately switch the load so that there is no deadtime, or period when neither source is providing power. The major difference between the non-programmable OR'ing device and two standard discrete diodes is apparent when the two sources are close in voltage to one another. With discrete diodes, both sources may provide power to the load depending on the voltage difference between them and the level of matching between the two diode's I-V characteristics. Because POWERGATE rectifiers are MOSFET-based, there is no ability to share the current load in an equivalent manner; one side is on and one side is off. As a result of system dynamics, there is the possibility of rapid switching of the load between the two sources; an example best explains this behavior...
Continue Reading this PDF document: Click here for the full PDF document

ADDITIONAL INFORMATION
If source Voltage levels are sufficiently close enough, dynamic Voltage sag/rise of one source in response to the opposing source sag/rise can cause oscillation or rapid-switching between the sources. In this case, the "Programmable" OR'ing should be considered. Click here for POWER GATE Programmable OR'ing Diodes Gen 3.0 and click here for POWER GATE Programmable OR'ing Diodes Gen 4.0.

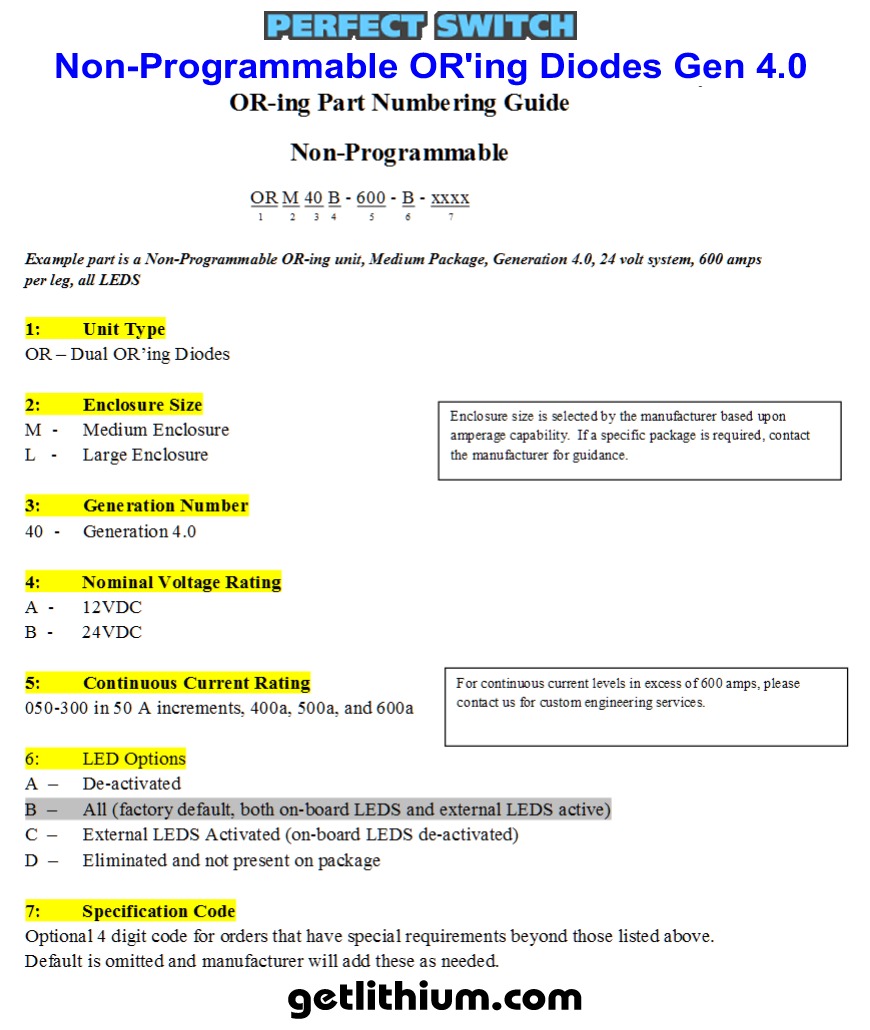

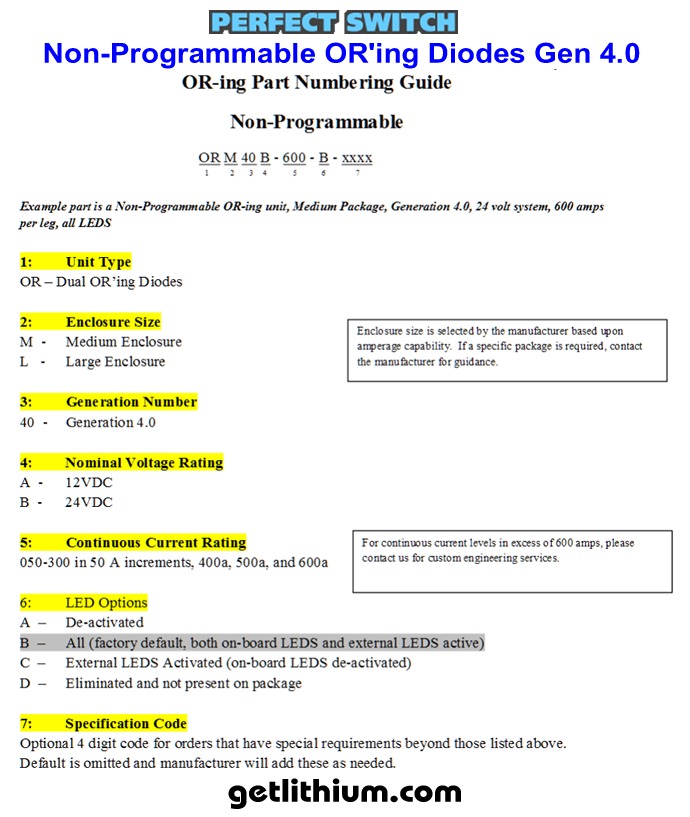

Part Numbering Guide - for Ordering:
Click here for a larger image
Click here for a larger image

Perfect Switch Power-Gate battery isolator rectifier spacer

Pricing: Please refer to the Pricing Chart below.
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us

Perfect Switch electrical relay price list

Perfect Switch Power-Gate battery isolator rectifier spacer

POWER-GATE DEVICE OPTIONS & OPTION PRICING:
Opto Isolated Input
Add $32.00 USD to device price
Under-Voltage Shutdown Feature
Add $22.00 USD to device price
Over-Voltage Shutdown Feature
Add $22.00 USD to device price
Circuit Breaker Functionality
Add $45.00 USD to device price
Sleep Mode Power Saver
Add $18.00 USD to device price
Perfect Switch Power-Gate battery isolator rectifier spacer
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us
Perfect Switch Power-Gate battery isolator rectifier spacer

PERFECT SWITCH PRODUCTS


Perfect Switch Power-Gate battery isolator rectifier spacer
ISOLATOR DEVICES/ RECTIFIERS

POWER-GATE Battery Isolators are industry leading, high performance, one-way electrical valves. They are commonly deployed in multi-battery applications where independent discharge or battery separation is required. Never confuse conventional battery isolators with POWER-GATE battery isolators. POWER-GATE devices enjoy ultra-low on-resistance and require no heat sinking and no airflow at currents up to 600 Amps.

Power-Gate rectifiers are the most efficient and reliable available

Recommended by EnerSys (manufacturer of Odyssey, Hawker, Loadhog, Powersafe, General, NP, Ironclad, Genesis, Heritage, and Varta batteries), and utilized in both military and civilian applications, POWER-GATE Battery Discharge Controllers insure that power gets to where it's needed without the excessive heat and Voltage drop typified by more common, lesser performing silicon and Schottky devices. Unlike conventional silicon and Schottky isolators, POWER-GATE's achieve sub-100 micro-ohm performance, even as the currents climb through 600 Amps; that's over 1,000% more efficient than traditional silicon and Schottky technology. With heat being the primary killer of electronics, engineering heat OUT of the product yields unparalleled reliability.

Perfect Switch manufactures Battery Discharge Controllers in two configurations: Single Rectifiers and Dual Rectifiers. Each is designed for use with multiple batteries and how you plan on using your DC resources will dictate which device is the appropriate choice for your application. Single rectifiers and dual rectifiers are available up to 300 Amps. Perfect Switch also offers higher power dual rectifier devices from 400 Amps to 600 Amps.



Perfect Switch Power-Gate battery isolator rectifier spacer
Contact Pinnacle Innovations
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us


Important Perfect Switch POWER-GATE Device Installation Information
Click on the images for detail photos
Click on the image for a larger POWER-GATE Installation tip image
Click on the image for a larger POWER-GATE Installation tip image
Click on the image for a larger POWER-GATE Installation tip image
We recommend the use of Blue Sea Systems "Terminal Block Fuse Sets" on the Perfect Switch stud terminals.
CORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.
INCORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.



Click here to go back to the Top
