Programmable OR'ing
OR'ing Diodes are designed to OR two sources to a single load. Ultra-low on-resistance means devices require no heat sinking and no airflow at currents up to 300 Amps. OR'ing Diodes are epoxy encapsulated in a custom ABS enclosure and are well suited for hostile environments. Both programmable and non-programmable versions are available.

Contact us to help determine which version is best suited for your application.

POWER-GATE PRODUCT PAGES
Perfect Switch Power-Gate battery isolator rectifier spacer

Perfect Switch Power-Gate solid state Programmable OR'ing Diode battery isolators

Quick Specs:
Programmable OR'ing Diodes (Gen 3.0)

Current Rating: 75 to 150 Amps
Operating Voltage: 6.5 to 36 VDC
(12 Volt, 24 Volt and 36 Volt models available)
Voltage Drop at Max Current: 50mV
Temperature Range: -40 to +105 C
Weight: 14.4 ounces
Dimensions: 5.40" x 2.86" x 1.57" each assembly

NOTE: Two Devices are Provided Per Assembly

Pricing: From $602.00 USD
See Pricing Details Below...

IMPORTANT: If you have a Balmar External Voltage Regulator connected in the system please advise so that we can program the trigger time to one minute (Balmar regulators have a 35 second delay before they power up).





Programmable OR'ing (GEN 3.0)

  • OR's two sources to a single load
  • Low voltage, High current capability
  • Industry-leading ultra-low on-state resistance
  • 99.9% efficient at maximum continuous current
  • No heat sinks or airflow required
  • No de-rating required over full temperature range
  • Fully encapsulate solid state design
  • Internationally patented arrayed MOSFET technology
  • MIL-STD-461E Compliant

Description:
POWER-GATE programmable OR'ing diodes are designed to selectively OR one of two sources to a load. This configuration can be programmed to automatically conduct current from a pre-defined Master source to the load. When the primary source drops to a pre-defined low Voltage threshold (or alternate metric), the device will "flip" and current from the secondary Slave source will drive the load. The customer's application and performance requirements dictate how the devices will be programmed. This setup is highly customizable so please contact us so we may assist in configuring devices for your application.

POWER-GATE programmable OR'ing diodes provide high performance and reliable switching without the conductive losses and leakage typical to Schottky rectifiers.

Conventional silicon and Schottky rectifiers can be economically priced, but have significant performance issues:

  • substantial Voltage drop as current passes
  • conductive losses create significant heat
  • batteries never get fully charged
  • alternator regulators always inaccurate due to diode drop

Programmable OR'ing diodes are constructed based on Perfect Switch's internationally patented large MOSFET array technology.

Questions/ Want to place an order?
Call us at 604-510-0800 or Email Us


Perfect Switch Power-Gate battery isolator rectifier spacer

Perfect Switch Power-Gate battery isolator rectifier spacer

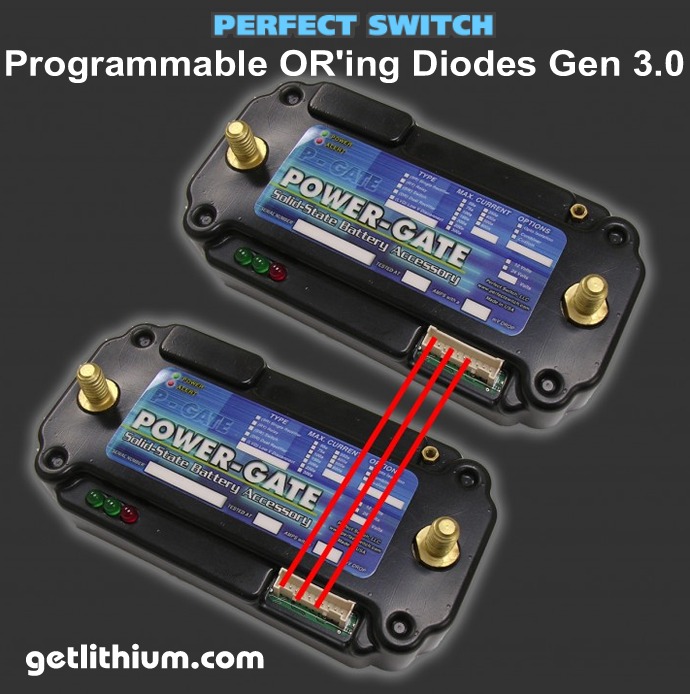

Programmable OR'ing Diode (Gen 3.0)
Information

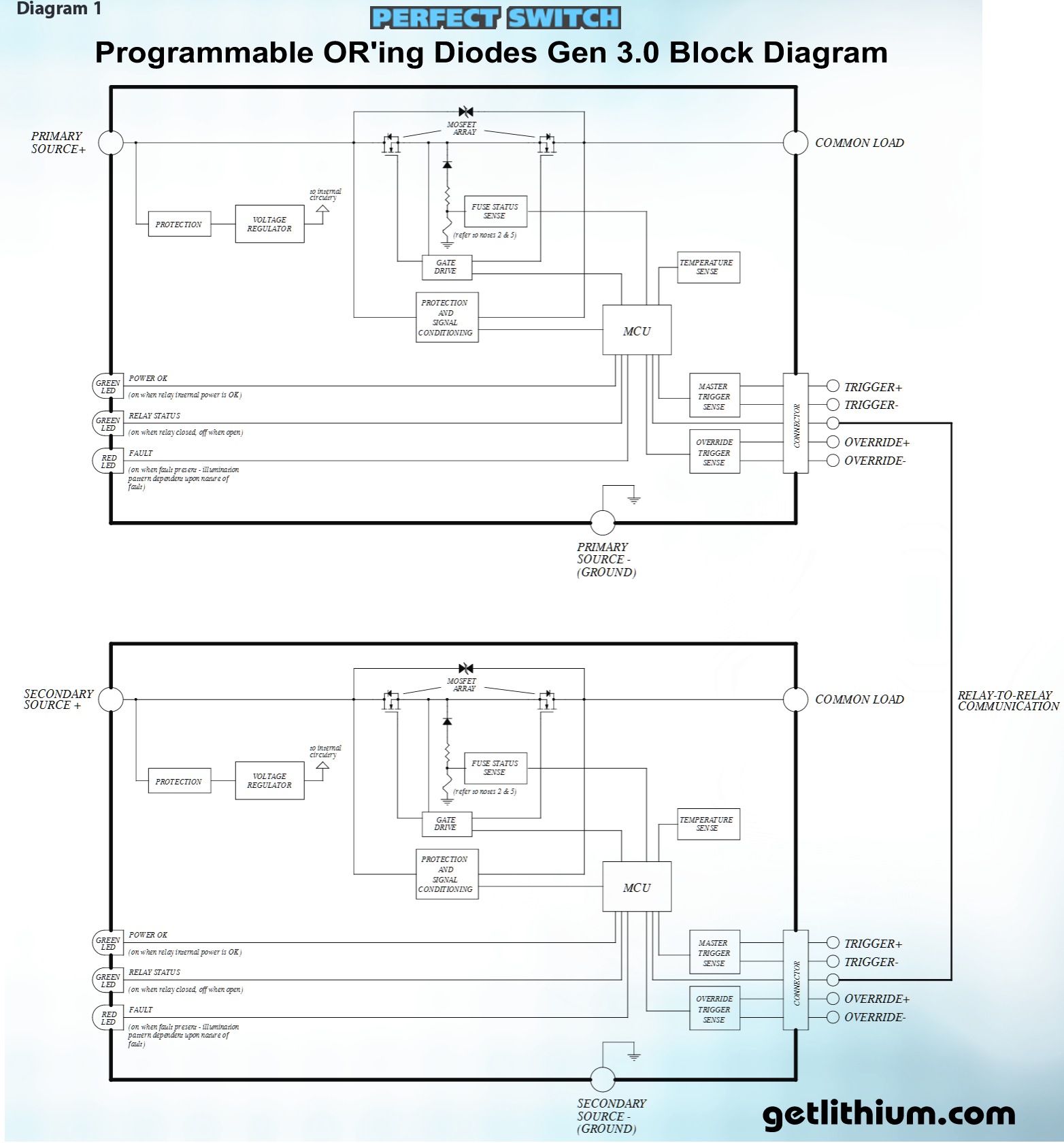

The POWER-GATE Programmable OR'ing functionality is achieved using two, bi-directional solid state relays (RB devices). For Absolute Maximum Ratings, Recommended Operating Conditions and Electrical Specifications, please view the specification sheet for the POWER-GATE Bi-Directional Relays. The information herein relates to OR'ing performance when deployed as an RB assembly programmed to behave as a smart OR'ing device.

SAMPLE APPLICATIONS

POWER-GATE programmable OR'ing configuration is designed to selectively connect one of two sources to a common load. As opposed to the non-programmable OR'ing diodes, which connect the higher of two sources to the common load, regardless of the source's absolute voltages, the programmable OR'ing configuration allows the user to choose any switching voltage threshold and delay. For example, a common configuration (shown below) is to OR a primary power supply and a backup battery. When the primary source voltage falls and stays below the user-defined under-voltage trip threshold for the user-defined delay, its corresponding relay will automatically disconnect the primary source from the load and command the load to be connected to the backup battery. When the primary source voltage then rises and stays above the userdefined under-voltage reset threshold for the user-defined delay, the load will automatically be disconnected from the backup battery and reconnected to the primary source.

The relays are configured standard as break-before-make, resulting in a short dead-time (refer to switching specifications) where the load is connected to neither source. This prevents cross-conduction between the sources, which is especially important if one source becomes shorted to ground.

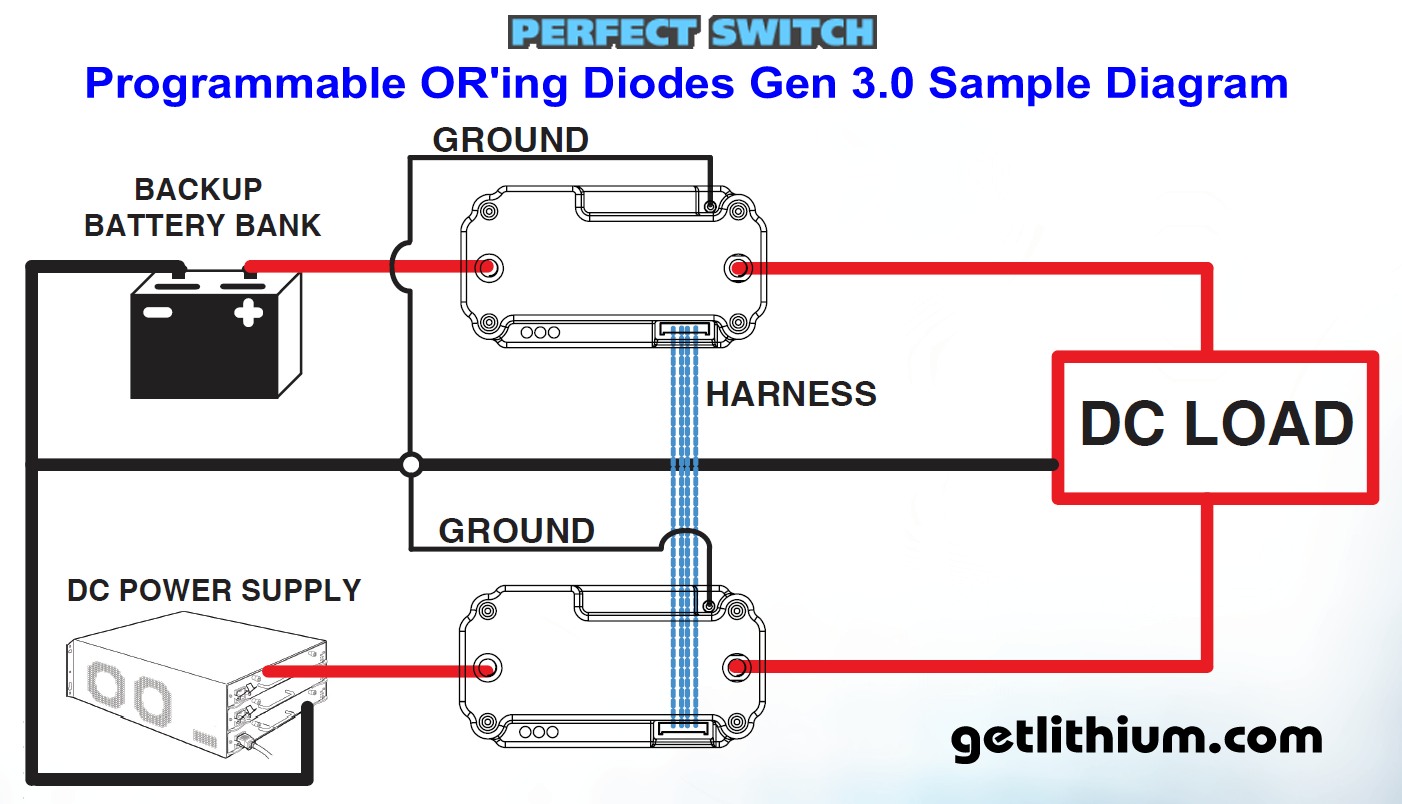

Sample Installation Diagram:
Click here for a larger image
Click on the image for a larger image

ADDITIONAL INFORMATION
Electronic assembly inserted into ABS encapsulation shell then backfilled with black, flame retardent, filled epoxy specifically developed for the potting of electronic modules.

Four integrated mounting holes pre-drilled to .250"

Mounting posts, 5/16-18 x .50" with provided brass washers and nylon insert 5/16-18 nuts. Mounting torque not to exceed 75 inch-pounds or 8.5 newton-meters.
Perfect Switch Power-Gate battery isolator rectifier spacer

Pricing: Please refer to the Pricing Chart below.
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us
Click here for a larger price sheet in a new window...
Click on the price list for a larger price sheet in a new window

POWER-GATE DEVICE OPTIONS & OPTION PRICING:
Opto Isolated Input
Add $22.00 USD to device price
Under-Voltage Shutdown Feature
Add $16.00 USD to device price
Over-Voltage Shutdown Feature
Add $22.00 USD to device price
Circuit Breaker Functionality
Add $45.00 USD to device price
Sleep Mode Power Saver
Add $13.00 USD to device price
Perfect Switch Power-Gate battery isolator rectifier spacer
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us
Perfect Switch Power-Gate battery isolator rectifier spacer

PERFECT SWITCH PRODUCTS


Perfect Switch Power-Gate battery isolator rectifier spacer
ISOLATOR DEVICES/ RECTIFIERS

POWER-GATE Battery Isolators are industry leading, high performance, one-way electrical valves. They are commonly deployed in multi-battery applications where independent discharge or battery separation is required. Never confuse conventional battery isolators with POWER-GATE battery isolators. POWER-GATE devices enjoy ultra-low on-resistance and require no heat sinking and no airflow at currents up to 600 Amps.

Power-Gate rectifiers are the most efficient and reliable available

Recommended by EnerSys (manufacturer of Odyssey, Hawker, Loadhog, Powersafe, General, NP, Ironclad, Genesis, Heritage, and Varta batteries), and utilized in both military and civilian applications, POWER-GATE Battery Discharge Controllers insure that power gets to where it's needed without the excessive heat and Voltage drop typified by more common, lesser performing silicon and Schottky devices. Unlike conventional silicon and Schottky isolators, POWER-GATE's achieve sub-100 micro-ohm performance, even as the currents climb through 600 Amps; that's over 1,000% more efficient than traditional silicon and Schottky technology. With heat being the primary killer of electronics, engineering heat OUT of the product yields unparalleled reliability.

Perfect Switch manufactures Battery Discharge Controllers in two configurations: Single Rectifiers and Dual Rectifiers. Each is designed for use with multiple batteries and how you plan on using your DC resources will dictate which device is the appropriate choice for your application. Single rectifiers and dual rectifiers are available up to 300 Amps. Perfect Switch also offers higher power dual rectifier devices from 400 Amps to 600 Amps.



Perfect Switch Power-Gate battery isolator rectifier spacer
Contact Pinnacle Innovations
Questions/ Want to place an order? Call us at 604-510-0800 or Email Us


Important Perfect Switch POWER-GATE Device Installation Information
Click on the images for detail photos
Click on the image for a larger POWER-GATE Installation tip image
Click on the image for a larger POWER-GATE Installation tip image
Click on the image for a larger POWER-GATE Installation tip image
We recommend the use of Blue Sea Systems "Terminal Block Fuse Sets" on the Perfect Switch stud terminals.
CORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.
INCORRECT INSTALLATION of Terminal Block Fuse Sets. Be certain to install Cable Terminal Isolators to Prevent Arcing.
