Super
Powerful, Lightweight, Long-Lasting Premium Lithionics Battery Lithium-Ion
Batteries for Solar Power, Recreational Vehicles and Marine
|
|
|
|
|
|
|
|
|
|
|
|
| |
GTX
Series Lithium Ion Battery and Accessories
All Prices $USD. Contact Us for Shipping/ Freight
Costs.
|
|
Great for 51 Volt to 144 Volt Electric Marine Propulsion
Systems.
|
|
Battery
Model
|
Applications
|
Volts
|
Watt
Hours
|
RC
Mins
|
Ahr
|
Weight
|
Size
|
Lithionics Battery Price*
|
Lithionics
Battery GTX 51V110A-E2707-DIN-MODULE Lithium-ion Battery
Lithionics
Battery 51 Volt Lithium-ion Battery
UN DOT 38.3 & other ratings
|
RV,
Trucks, Marine, Solar power, Electric Marine Propulsion
Motors, Industrial applications
|
51.2
|
|
|
110
|
|
Battery
measures 26.7" x 6.7" x 10.1" overall height. Add extra
space for DIN cables
|
Sorry
- this model has been discontinued
|
|
|

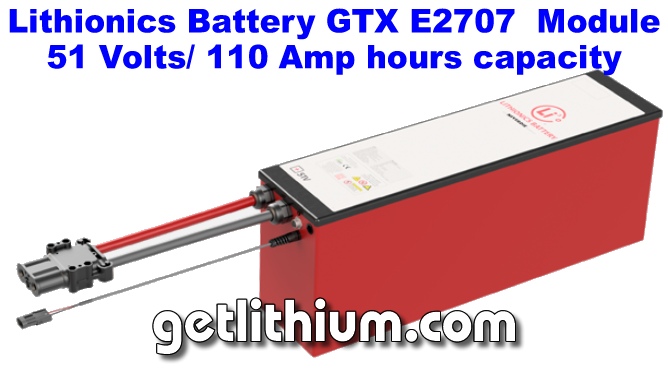

The
Lithionics Battery GTX 51V110A-E2707-DIN-MODULE is a great,
lightweight Lithionics 51 Volt lithium ion battery
in custom E2707 Aluminum case
now with an increased 110 Lithium Amp Hours Reserve
Capacity. External NeverDie Battery Management
System is required. Click
here to see the NeverDie Battery Management System (BMS)
page, options and pricing.
Please
Note: This Lithionics Battery lithium-ion battery now uses
the smaller F2707 aluminum battery case which measures 26.72"
long x 6.72" wide x 10.1" tall - add extra space
for the DIN cables.
This
extremely versatile battery can be used for a wide variety
of applications including Deep Cycle House Power for RV
and Marine applications as well as hybrid-electric marine
propulsion and as a diesel engine cranking battery for Marine
Engine Starting on sailboats and yachts. We can wire up
2 or more of these batteries in series or parallel to power
electric marine motors with Voltages equal to or higher
than 51.2 Volts - including the 144 Volt Elco 100hp EP100
electric marine motors.
|
Click
on the PDF logo to the right for the Lithionics Battery
spec sheet in PDF format.
The Lithionics Batteries are "lithium-ion"
which is the short term for lithium iron phosphate
and the chemistry name for the batteries is the super
safe and reliable "LiFePO4".
|
|
|
Click
on the PDF logo to the right to view the Lithionics
Battery "EURO DIN Connector Bulletin" that
shows what to watch for when plugging the EURO DIN
Connector Harnesses in between the Lithionics Lithium-ion
Batteries/ NeverDie Battery Management System/ Combiner
Boxes
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Battery Charger Approved Settings Guide
|
|
|
Click on the PDF logo to the right to view the Lithionics
Battery Installation Guide
|
|
This
battery is a dual-use battery: Deep Cycle Battery House
Power or as a Primary Engine Starting Battery or Main Vehicle
Battery. Lithionics lithium-ion batteries are the ideal
solution for Solar Power Harvesting and Off-Grid Electrical
Energy Storage as they harvest more energy than lead type
batteries.
Ordering
an "Engineered Solution"
Here at Pinnacle Innovations/ getlithium.com and Lithionics
Battery we like to think that we do things differently -
the Lithionics Batteries are certainly built to a far higher
standard than other lithium-ion batteries on the market.
Our Sales Approach is also quite different - we offer what
we call "Engineered Solutions" where we take the
time to understand your needs and all of the particulars
of your project so tht we can correctly specify the right
product for you to get you all of the performance that we
say you will get. As a part of this process we do need to
submit a "New Project Information Sheet" for all
new projects. If you are able to download the following
two documents and submit them by email to us at siteinfo@shaw.ca
that will be very helpful. Of course Pinnacle Innovations/
getlithium.com will be happy to complete and submit these
to Lithionics once we have had a few discussions and assessed
your project.
Alternator
Charging:
The long-term effects of constant charging from "unregulated/
controlled alternators" are indicating possible degradation
of lithium-ion batteries. As such, we only recommend directly
connecting a Lithionics battery system to a high quality
alternator that connects to either a Wakespeed or Balmar
branded external Voltage Regulator that can offer proper
3 stage charging AND the Lithionics BMS option "FCC"
can turn off the alternator when the lithium battery is
full. For alternators that are "shared" and need
to charge a lead-acid/ AGM start battery as well as the
Lithionics battery we recommend using a high quality DC
to DC Battery Charger like those made by Sterling Power
(ignition enabled option) that will connect to your start
battery and feed the Lithionics Battery. Please consult
Pinnacle Innovations and we will be happy to specify how
best to achieve alternator charging and we can also supply
any parts needed - such as DC to DC Battery Chargers, Wakespeed
or Balmar branded external Voltage Regulators and high efficiency
battery isolators by Perfect
Switch. Contact Us
Page...
OPTIONS:
We also offer a "Cold Weather Protection System"
for this battery
system (2 of the following would be needed):
Lithionics Internal Lithium-ion Battery Heater Kits
Type 1 and Type 2 for Version 8 external BMS |
Theory
of Operation:
The heater kit is a convecting type heating system
internal the battery or module that applies and
average of 30 Watts per hour (at -4F/-20C continuous
ambient temperatures) and is controlled by a thermostat.
The thermostat maintains the lithium cell/core to
a temperature between 35 and 40 degrees fahrenheit.
This permits sub-freezing charging operations.
|
NOTE:
NOT AVAILABLE FOR STANDARD SERIES BATTERIES.
|
|
EXTREME CONDITIONS: We also sell a product called
"Dynaliner" that is an external
thermal protective wrap with a very high K Value of 0.3.
This "Dynaliner" material is from
0.125" to 0.5" thick and non-conductive.
This option is recommended for extreme temperature situations.
PRICING:
2.25% Discount On Lithionics Battery Purchases For Wire
Transfer, Cheque, Interac Bank Email Transfer (Canada Only)
or Cash Payments.
Fleet Pricing, and Volume Discounts also available.
Prices may be lower for in-stock items or for multiple items
ordered in a single shipment.
* All Prices Subject to Change. Shipping/ Freight is extra.
Notes:
1 Lithium Amp Hour = 2 Lead Acid Amp Hours in 12 Volt applications,
2.5 Ahr in 24 Volt applications and 3.5 Ahr in 48 Volt applications.
Lithionics Battery Charging Parameters:
For Lithionics 12 Volt lithium-ion
battery systems:
Charge
14.4 Volts. Float 13.4 Volts.
High
Voltage Cutoff (HVC) 14.8 Volts.
Low
Voltage Battery Cut Out: 12.1 Volts
For Lithionics 24 Volt lithium-ion
battery systems:
Charge
28.8 Volts. Float 26.8 Volts.
High
Voltage Cutoff (HVC) 29.6 Volts.
Low
Voltage Battery Cut Out: 24.2 Volts
For Lithionics 48 Volt lithium-ion
battery systems:
Charge
54.0 Volts. Float 50.3 Volts.
High
Voltage Cutoff (HVC) 55.5 Volts.
Low
Voltage Battery Cut Out: 45.4 Volts
For Lithionics 51 Volt lithium-ion
battery systems:
Charge
57.6 Volts. Float 53.6 Volts.
High
Voltage Cutoff (HVC) 59.2 Volts.
Low
Voltage Battery Cut Out: 48.4 Volts
Set the "Absorption Time"
to 30 minutes. Lithionics
Battery charging PDF
For modern, programmable 3rd party
inverter/chargers etc., we
recommend using "Custom
Settings" and follow our Charger
Instruction PDF Guide but
disable "equalization".
If in doubt, please Contact
Us.
Lithionics Battery offers several different types of
AC and DC powered lithium-ion battery chargers that have
been tested and work well with the Lithionics batteries.
Click
here
for details on the Lithionics Battery approved Battery Chargers...
- Lithionics
Battery Lithium Ion Battery Life:
- 5,800
cycles at 50% Depth of Discharge
- 3,000
cycles at 80% Depth of Discharge
- 2,300
cycles at 90% Depth of Discharge
Note: At the end of the cycles the battery will
still work fine and can last many more years but
may have lost up to 20% of the original Amp hour
capacity.
- Our
batteries typically have a 10 Year+ Service Life
- Warranty
Page...
- Lithium
Ion Battery Industry SAFETY LEADER: Approved to U.N.
International D.O.T. 38.3 for Lithium - many BMS and
battery models also UL approved.
- NEVERDIE
SYSTEM NOTES AND FREQUENCY OF CHARGING:
A.) The "Pushbutton NeverDie System" has a
continuous Amperage draw of 2 Milliamps.
B.) Some of our Lithionics Battery lithium-ion batteries
can be ordered with either "Pushbutton NeverDie
System" (A) which is the BMS built into the battery
or can be ordered with the "External BMS box Pushbutton
NeverDie System" (B). As such, our smaller batteries
will likely need some recharging every 2-4 months to
compensate for the small amperage draw (.002 Amp) of
the NeverDie System. Please be sure to ask about this
at time of ordering or check the Lithionics Storage
Procedure Guidelines.
If your application also has a small "Parasitic
Drain" (clock, alarm system etc.), this must also
be factored in and the battery charged in accordance
with the total amperage draw.
Lithionics
Battery lithium-ion batteries are 97% EFFICIENT FOR SOLAR
POWER. Compare that with only 55% to 85% efficiency
for other types of batteries including deep-cycle lead acid
batteries. Lithionics Battery lithium-ion batteries also
charge from 2 to 10+ times faster than other batteries,
which gives you more use out of your lithium-ion battery.
Visit our
Solar Power page...
We also
offer a great selection of solar panels suitable for RV's,
yachts and sailboats of all sizes - including durable flexible
solar panels that can be walked on.
Battery
Meters/ State-of-Charge
Meters and Gauges are also available at additional cost.
For multiple battery systems, our Neverdie Control Box may
also be required.
|
|
|
|
|
|
|
|
|
|
|
|
A
powerful, reliable alternative to Torqeedo
Electric Outboards - the series of Elco
Electric Outboard
Motors!
|
|
Pinnacle
Innovations offers Lithionics Battery lithium-ion
batteries for sale all across Canada including the
following cities (and other Canadian cities): Toronto,
Montreal, Calgary, Ottawa, Edmonton, Mississauga,
Winnipeg, Vancouver, Brampton, Hamilton, Quebec City,
Surrey, Langley, Laval, Halifax, London, Markham,
Vaughan, Gatineau, Longeil, Burnaby, Saskatoon, Kitchener,
Windsor, Regina, Richmond, Richmond Hill, Oakville,
Abbotsford, Chiliwack, Burlington, Sudbury, Sherbrooke,
Oshawa, Barrie, Kingston, Cambridge, Coquitlam, Whitby,
Guelph, Kelowna, Saanich, Victoria, Nanaimo, Thunder
Bay, St. John's, Red Deer, Kamloops, Fort MacMurray,
Fredericton, Grande Prairie, North Bay, Whistler,
Prince George, Pickering, North Vancouver, Aurora,
Shawinigan, Moncton, Saint John, Lethbridge &
more. Some International Orders are also possible.
|
|
|
|
|
Need Accessories for Your
Lithionics Lithium Ion Battery?
We got you covered...
|
|
|
-
High and Low Frequency
- External & Installed Chargers
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADDITIONAL NOTES:
** Working Life with batteries equipped with the NeverDie
System that helps
prevents over-discharging.
Refer to the Lithionics
Cycle Life Chart for more details.
"CA" means Continuous Cranking Amps
"CCA" means Cold Cranking Amps
"Ahr" means Amp Hours.
Note: 1 Lithium Ion AHr = 2 Lead Acid AHr in
12 Volt Applications - the
advantage is higher in higher Voltage Lithionics lithium-ion
battery applications.
Please check our battery sizes to ensure correct
fit Before Ordering
NEVERDIE system included
where shown.
NEVERDIE system option
available at extra cost: Click
here to visit the NeverDie Battery Management Systems
page for full details and pricing
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
You
may ask "What is NEVERDIE or BMS?"
The Lithionics NeverDie is
the name for our Battery Management System (BMS) which is
essentially the brains of a lithium-ion battery system. This
is an option that can be ordered with ALL of our batteries.
The BMS performs numerous safety functions to help protect
the battery and your system and is also very useful for reporting
information to the user.
On
the battery discharge side of things the BMs is in part a
Low Voltage Cutoff (LVC) circuitry built into the battery
that will allow you to use the electricity in your deep cycle
lithium-ion battery and the battery will automatically enter
"sleep mode" once the battery is drawn down to typically
90% discharged. This means you can use approximately 90% of
the energy in the battery before it enters "sleep mode"
to prevent further discharging. This helps to prevent accidental
overdischarging and the battery can be put back in use by
pressing the round switch - at which time you should also
begin recharging.
In
addition, the NeverDie BMS also acts as a protection system
when charging the battery to help eliminate over-charging
and acts to protect against excessive charging Voltage. Its
important to always follow Lithionics' charging instructions
and use compatible charging equipment. Lithionics BMS has
several advanced communication options that work with their
party lithium battery charging equipment to help ensure safe
and optimal charging. Find
out about the Lithionics SOC or battery monitor display and
reporting systems here...
The
NEVERDIE BMS is available as built-in option on several
of the 12 Volt batteries and has a simple button will
be located on the top of your battery to manually shut down
the battery for storage or to "wake up" the battery
from sleep mode.
The
NEVERDIE BMS is also available as as an external BMS box
that connects to a Lithionics Battery module. This is actually
a more robust system and one that we require for all marine
projects. This connects to the battery and in real time is constantly
performing all of the checks needed to protect the battery from
both charging and discharging errors.
Find
out more about the Lithionics Battery NeverDie BMS on our main
BMS webpage.
|
|
|
|
|
| |
|
|
|
|
|
MORE POWER
|
1/5 WEIGHT OF AGM/ LEAD
|
LONG LIFE
|
ENVIRONMENTALLY FRIENDLY
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
~ Deep Cycle
Lithium
~ Engine Cranking
Lithium
Batteries
~ RV Lithium
Batteries
~ Marine Lithium
Batteries
~ Large Scale
Lithium-ion
Batteries
~ Solar Power
Lithium
Batteries
~ Truck Industry
Lithium
Batteries
|
~ Lithionics
Battery
NeverDie BMS
~ Dual Channel
BMS
~ State of Charge
Monitoring
Systems (SOC)
~ CANbus
Controls
~ Alternator
Controls |
~ Sailboat/ Yacht
Inboard &
Outboard Electric
motors
~ 5hp, 9.9hp, 14hp,
20hp, 30hp &
50hp
electric
outboards
~ 6hp, 12hp, 20hp,
40hp, 70hp and
100hp electric
inboards
~ Lithium-ion
and Victron
Energy
AGM
Batteries |
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
Cruisers
~ Offshore
Racing
Boats
~ Yachts
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators |
~ Class A, B & C
Recreational
Vehicle Lithium-ion
Batteries
~ Mercedes Benz
Sprinter
Van
Lithium-ion
Batteries
~ Deep Cycle &
Engine
Cranking
Lithium-ion
Battery Systems
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators
|
|
|
High
Performance Lithionics Battery GTX 51 Volt 110 Amp hour
F2707 DIN-MODULE UL Approved Aluminum Battery Case Lithium
Ion Battery for use with Recreational Vehicles, Yachts,
Sailboats, Solar Power Projects, Electric Marine Motor
Propulsion Systems and Industrial Projects for sale Internationally,
all across the USA and Canada including Toronto, Montreal,
Calgary, Ottawa, Edmonton, Mississauga, Winnipeg, Vancouver,
Brampton, Hamilton, Quebec City, Surrey, Langley, Laval,
Halifax, London, Markham, Vaughan, Gatineau, Longeil,
Burnaby, Saskatoon, Kitchener, Windsor, Regina, Richmond,
Richmond Hill, Oakville, Burlington, Sudbury, Sherbrooke,
Oshawa, Barrie, Kingston, Cambridge, Coquitlam, Whitby,
Guelph, Kelowna, Saanich, Victoria, Nanaimo, Thunder Bay,
St. John's, Red Deer, Kamloops, Fort MacMurray, Fredericton,
Grande Prairie, North Bay, Whistler, Prince George, Pickering,
North Vancouver, Aurora, Shawinigan, Moncton, Saint John,
Lethbridge including British Columbia (BC), Alberta (AB),
Saskatchewan (SK), Manitoba (MB), Ontario (ON), Quebec
(QC), New Brunswick (NB), Nova Scotia (NS), Prince Edward
Island (PEI), Newfoundland (NL), Yukon Territory (YT),
Northwest Territory (NT), Nunavit (NU) and Iqaluit and
more.
Copyright
getlithium.com, Lithionics Battery and Respective Copyright
Holders 2022. All rights reserved.
|
|
 |
|
 |
|
|
