LITHIONICS BATTERY STATE OF CHARGE METER SYSTEMS & GAUGES

Available Lithium ion Battery SoC Monitor Gauge
and Battery State of Charge Meter System Models

All Prices $USD. Contact Us for Shipping/ Freight Costs.

Lithionics Battery State of Charge Monitor System is now using the new ION Gauge.

We offer complete State of Charge (SOC) Monitoring Systems in several configurations for Lithionics lithium-ion battery systems only (see details below):

We also offer a Bluetooth State of Charge Monitoring System. See information just below...

The 300 or 400 continuous Amp draw version (either built-in with your battery or integrated with an external BMS box). Priced at $406.64 USD for the external 3.77" round gauge which also requires the Advanced Version 8 Battery Management System. Add the simple 24 foot long harness part number 75-521-288 is $135.90 USD ($545.54 USD total). (Price is for 12-24 Volt Systems. Prices are higher for high Voltage Applications.)

We can offer higher Amp rated Lithionics SoC kits - please contact us for a price quotation.

Here is what the Lithionics State of Charge Monitor Kit Display Gauges looks like:




ION Gauge SOC harness. Part number 75-521-288: $135.90 USD	Lithionics PDFs for the ION Gauge: Contact us for a PDF that shows multiple CANbus connection wiring diagrams. Example: connecting the ION Gauge and Wakespeed WS500 alternator external Voltage regulator. (available through Pinnacle Innovations/ getlithium.com)
Above Wiring Diagram is for two or more GTX Series Internal BMS Batteries Connected to 1 ION Gauge	ION Gauge SOC harness. Part number 75-523-288: $135.90 USD. Use this harness if you need to connect both an ION Gauge and a second CANbus connection. NOTE: When connecting 75-523-288 to just one battery you must use the "battery cable #1" and the other battery cable #2 of the harness will not be used and can be coiled up out of the way.

Updated multi-function ION Gauge Digital State of Charge round display gauge. This gauge sells for $545.54 USD including the 24 foot connection harness and we use part number 51-163 for the Ion Gauge/ Canbus connection harness set. It requires the use of the "Advanced Series Lithionics Battery Management System" which has the Coulomb counter for the gauge built into the BMS.

Multi-Function-Display for the Compact Series (CS200) BMS Battery System ("MFD" Gauge)

Description: a hard-mounted display to provide State of Charge, State of Health and Diagnostic Code data. A single display will connect to 1 or more batteries operating in parallel.

Compatibile with all current Lithionics Battery systems.

NOTE: The IONGAUGE can be used to monitor two of the below batteries connected in parallel.

GTX12V315A-E2107-CS200

GTX12V320A-E2107-CS200-UL

Full Systems Monitoring - Battery Fuel Gauge, SoC Gauge and Error Reporting. It is necessary to have our full State of Charge System kit to make this gauge work (the Advanced Version 8 Battery Management System). Comes with 24 foot plug and play cable. Connects in seconds.

Some of the 17 parameters displayed:

Graphical and numeric battery "fuel gauge" showing remaining energy/ Amp hours
Volts
Net Amps being consumed or charged
Status codes (used for troubleshooting)
Cumulative Amp hours consumed (new) and more...

Note: Digital Display Power Consumption

Display turned "OFF" = .5 Watts

Display turned "ON" = .75 Watts

Bluetooth State of Charge Monitoring System

Bluetooth State of Charge (SOC) Monitoring System	Full Systems Monitoring - Battery Fuel Gauge, SOC Gauge and Error Reporting. Shows: Battery Voltage Net Amps Charging or Discharging Battery Temperature Amp Hour Capacity Remaining Graphical Fuel Gauge % SOC figure and more. It is necessary to have the Advanced Version 8 Battery Management System (BMS). Offered as an option for internal or external BMS Box Lithionics Battery Systems. This option is available for all Lithionics Batteries with built-in Advanced Version 8 BMS as well as the low cost 125 Amp hour AGM Replacement Battery (we can also offer it some of the small/ mid-size 12 Volt batteries such as the 75, 110, 150 and 195 Amp hour lithium-ion batteries). Works with both Android and iPhone Smartphones. Bluetooth range varies depending on battery system location but is typically 50 to 60 feet. Ambient power draw is 10 milliamps. Please take this into account when storing your battery as this could deplete a fully charged 100 Amp hour battery in about 400 Days.	Click here for the Free downloadable APP at the Google Play website	$174.44 USD for the Bluetooth circuit board. NOTE: This option must be ordered with your battery or BMS system. The downloadable APP is Free at the Apple Store - Search for Lithionics Battery Apps Click here for the Free download APP at the Google Play site Click on the PDF logo below for the Bluetooth SOC guide/ programming instructions.

Important State of Charge Kit User Guides/ Resources

Click on the PDF logo for the Bluetooth SOC guide/ programming instructions.

Lithionics Advanced User Guide
for USB/ DB9 Option with Streaming Data Logging
Includes PuTTy.org Software Instructions

Lithionics Advanced NeverDie BMS/ SOC
Error Code Definitions
- Contains Macros that must be enabled

Lithionics State of Charge
Error Code Reader
USE THIS APP TO DETERMINE WHAT AN ERROR CODE ON YOUR SOC GAUGE MEANS OR CONTACT US FOR ASSISTANCE

Click here to download the APP for Android devices.

To Use: Scroll through the screens on the round SOC gauge until you get to a display that has the letter "R" followed by 6 digits. Example for normal status: R000000. Once you have the code, use the red letter and number buttons on the lower part of the APP screen to input the 6 digits that your SOC display shows.

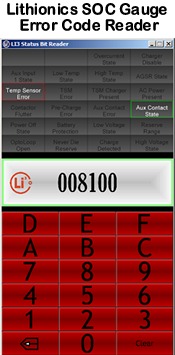

This is what the Lithionics State of Charge Error Code Reader APP looks like.

Click on the PDF link for the Error Code Guide:

Lithionics State of Charge Monitoring System with the ability to broadcast data via WiFi.

The Windows App and User Guide are free of charge. You will also need:

Advanced Version 8 BMS
Dongle 23Pin Ampseal (port serial data 3.5mm) for $136.00 USD
The TCPIP SOC option for $272.00 USD
3.5mm to USB transition cable: $66.64 USD
Lithionics State of Charge ION Gauge: $406.64 USD pluys harness
The TCPIP output on the BMS/ SOC box is via an M12-D Code connector. Customer will need to purchase their own cable to connect to this.

Lithionics SOC User Guide for Windows WiFi Broadcasting

Click here for the small
Windows App program

Note: This is provided free of charge from Lithionics but Users are responsible for installation/ integration with a Windows device - such as a Smartphone.

NOTE: Please discuss with getlithium.com/ Pinnacle Innovations the expected temperature extremes that your Lithionics lithium-ion batteries will be exposed to as there are acceptable limits that we need to work within. In most cases we can offer either a heating or cooling system to permit your system to work in all conditions.

SALES: 604-510-0800 or siteinfo@shaw.ca
State of Charge Complete Kits: Built-In. Require "Advanced Version 8 BMS" that has the Sending Unit Built-in
Part Number and Link:	Description:	Graphic and Link:	Lithionics SOC Price:*
IONGAUGE SOC-STATUS Round State of Charge Monitoring System (SOC) Fuel Gauge Option	Introduction of the Multi-Function-Display for the Compact Series (CS200) BMS Battery System (“MFD” Gauge) Description: a hard-mounted display to provide State of Charge, State of Health and Diagnostic Code data. A single display will connect to 1 or more batteries operating in parallel. Compatibile with all current Lithionics Battery systems. 24 feet of CANbus connection cable included for 1 BMS connection. NOTE: The IONGAUGE can be used to monitor two of the below batteries connected in parallel. GTX12V315A-E2107-CS200 GTX12V320A-E2107-CS200-UL Full Systems Monitoring - Battery Fuel Gauge, SoC Gauge and Error Reporting. It is necessary to have our full State of Charge System kit to make this gauge work (the Advanced Version 8 Battery Management System). Comes with 24' plug and play cable. Connects in seconds. Above Wiring Diagram is for two or more GTX Series Internal BMS Batteries Connected to 1 ION Gauge	Additional Harnesses Info: ION Gauge SOC harness. Part number 75-523-288: $135.90 USD. Use this harness if you need to connect both an ION Gauge and a second CANbus connection. NOTE: When connecting 75-523-288 to just one battery you must use the "battery cable #1" and the other battery cable #2 of the harness will not be used and can be coiled up out of the way.	ION GAUGE $545.54 USD total which includes the simple 24 foot long harness part number 75-523-288. This combo Gauge/ Harness becomes part number 51-160. (Price is for 12-24 Volt Systems. Prices are higher for high Voltage Applications.) Optional Networking and Monitoring: Lithionics M12 + to M12 - DeviceNet (RVC) adater cable for networking Lithionics BMS to RVC CANbus. Part Number: 75-524-18 $76.16 USD Weatherpak Female to DeviceNet drop adapter cable for IONGAUGE. Part Number: 75-219W-36 $59.84 USD Lithionics PDFs for the ION Gauge:

48 Volt and Higher SOC Kits	Custom made-to-order built-in State of Charge computer and sending unit. Specifications to meet your needs.		Please Contact Us

IMPORTANT STATE OF CHARGE KIT & NEVERDIE BMS NOTES: The Version 8 and Version 9 Lithionics Advanced Battery Management System incorporates "Battery Temperature Monitoring" that can shut off battery power in Extreme Cold or Extreme Hot conditions to ensure that charging does not occur except within the UL listed parameters. This system also interfaces with the State of Charge Monitoring Kit (SOC). As such, for recharging of the battery, we want to make sure the battery is above 0 Celsius or 32 Fahrenheit (we can still discharge at -20 Celsius) or below 113 Fahrenheit or below 131 Fahrenheit for the GTX batteries (we can discharge up to 140 Fahrenheit). Worth noting is that when the temperatures fall back within the parameters, the system automatically re-latches. We have several ways that we can automatically keep the battery system at optimal temperatures for full operation at all times (charging and discharging) so this is an important subject to discuss with getlithium.com/ Pinnacle Innovations. Lithionics can provide an internal heating system for the batteries that turns on/ off automatically from $139.00 USD for mid and large size batteries (300 Amp hours and higher). The Lithionics internal automated heating systems are not available for the Lithionics "Standard Series" lithium-ion batteries. getlithium.com/ Pinnacle Innovations also offers an external 12 Volt DC 100 Watt heating system or cooling system from $139.00 CAD that is suitable for battery and BMS installations in a sealed or semi-sealed battery compartment. In addition, if our automated heating or cooling features are not possible, then it is advisable to opt for the "Dual Channel BMS option" (see notes below) that separates the charge and discharge functions of the system. With Dual Channel, even if the battery temperature is outside the recommended temperatures of 32 to 113 Fahrenheit we can let the "Charge Path" on the BMS shut off to prevent charging but the "Discharge Path" remains open and functional so you can power your AC and DC loads. The Dual Channel option is always recommended for Marine Systems (added lightning protection/ redundancy) but it is also highly recommended for battery systems using solar power (susceptible to Voltage spikes that can trigger the BMS High Vltage Cutoff) and now for battery systems exposed to temperature extremes.

DISCONTINUED: State of Charge Complete Kits - External SOC Box
Part Number and Link:	Description:	Graphic and Link:	Lithionics SOC Price:*
SOC Complete Kit Round Gauge with External SoC Box	Complete external 200 Amp State of Charge computer box and sending unit, 200 amp rated with Round Display Gauge.		No longer available. Select ION gauge options above.

Lithionics State of Charge Kit (SOC) Accessories and Options
TELEMETRY:
Part Number:	Description:	Lithionics SOC Price:*
USB Telemetry (Streaming Data)	Optional USB, DB9, 0- 5 Volts/ 3-Bit Register Outputs (Streaming Data) USB port and cable used with the DB9 New NeverDie System. Measures all functions. Programmed at factory to match battery and voltage of battery. Measures/ Displays: Voltage Amperage Draw State of Charge Amp Hours Remaining Battery Fuel Gauge and more via CAT5 Ethernet cable connection. Please order when you order your battery and State of Charge System.	$210.94 USD

CANbus - Installed with INTERNAL NeverDie BMS	CANbus connection option: Limited availabity for INTERNAL NeverDie BMS Batteries and Must be Ordered at Time of Ordering Battery and please inform us if you also need CAN terminators. Can be used to connect to NCC smart lithium-ion battery chargers or to connect to existing equipment to integrate our SOC functions with your master display system commonly found on yachts and RV's - such as the Silverleaf System. Measures all functions. Programmed at factory to match battery and voltage of battery. Measures Voltage, Amperage Draw, State of Charge, Amp Hours Remaining, Battery Fuel Gauge and more via CAT5 Ethernet cable connection Measures/ Displays: Voltage Amperage Draw State of Charge Amp Hours Remaining Battery Fuel Gauge and more via CAT5 Ethernet cable connection. CANBus Data Interface PDF: Please order when you order your battery and State of Charge System.	Now included - just pay for the communication cable that you need.

CANbus - Installed with SoC and EXTERNAL NeverDie BMS box	Optional CANbus communications for the Lithionics State of Charge Monitor Kit. Measures all functions. Programmed at factory to match battery and voltage of battery. Measures Voltage, Amperage Draw, State of Charge, Amp Hours Remaining, Battery Fuel Gauge and more via CAT5 Ethernet cable connection Measures/ Displays: Voltage Amperage Draw State of Charge Amp Hours Remaining Battery Fuel Gauge and more... Please order when you order your battery and State of Charge System.	Now included - just pay for the communication cable that you need.

Below are a few graphics that show how these Lithionics Battery instruments can be ordered and used in your installation. Click on the images for a larger graphic in a new browser window.
