Polar Power Marine DC Diesel Generator Explanation of the Differences Between Wet and Dry Exhaust Systems

A wet exhaust mixes engine exhaust gases with cooling water, cooling them down and muffling noise, allowing for cheaper hoses but requiring careful plumbing to prevent waterlogging. A dry exhaust, like a car, vents hot, uncooled gases through insulated pipes, creating significant heat and noise but simpler routing, often using heavy metal for high heat, sometimes with keel cooling. The core difference is water injection: wet uses it for cooling/silencing, while dry relies on insulation and proper discharge for heat management.

Wet Exhaust

Dry Exhaust

Key Differences



Dry and wet exhaust.

The difference between a wet and dry exhaust explained!
Compare a dry exhaust to the exhaust pipe of the car: a pipe with a flexible connecting piece on the exhaust manifold, discharging the exhaust gases directly to the outside air. A dry muffler is often required to muffle the noise. Cooling water from the engine is added to the exhaust system either externally or at a much later stage. The tubes and pipes are often made of steel to prevent them from melting due to the high temperature. It is a simple system, but with two major drawbacks: it emits intense heat of up to 600°C at the source, and it produces more noise.

Rather a wet exhaust?
What is a good alternative? That’s right, the much talked-about wet exhaust system. It is recognised by the manifold that is mounted on the engine. This is often custom-made from cast iron. It is also recognised by the freezer caps in the cooling channels. The heated cooling water in the engine is around 60-90°C when it leaves the engine, so it can be perfectly used to cool the 600°C exhaust gases. Water and gases are often not yet mixed in the first section of the exhaust pipe. That is to prevent the water from entering and blocking the gases from exiting the engine. Gases must be able to exit the engine smoothly so as not to compromise the engine performance. At a short distance from the engine, the gases and liquids come together and exit the engine.

The difference in temperature of a dry and wet exhaust is noticeable and has many advantages.

The noise of a wet exhaust is muffled by the water, but a rubber exhaust hose can also be used. This gives more flexibility and has a longer life span.

Various cooling systems

In simple terms, there are three types of cooling systems:
1. A system that pumps water straight from outside into the engine block by way of an impeller pump;
2. A separated system, often referred to as an intercooling / heat exchanger system, with coolant in the engine and an impeller pump pumping cooling water through a heat exchanger.
3. A keel cooling system, with cooling pipes containing coolant running underneath the boat. A wet exhaust is not possible in this system, unless an extra pump is installed.

From dry to wet?
Convert the dry exhaust if you would like to experience the advantages of a wet exhaust system. Fully assembled exhaust pipes are available on the market. Or just add water to the dry exhaust, where only the first section is not cooled. Conversion may require a fair amount of money, but it is an easy job for the handy do-it-yourselfer and it will pay off in due course.

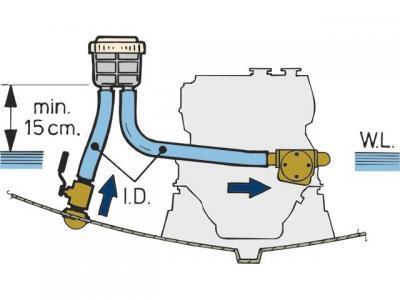

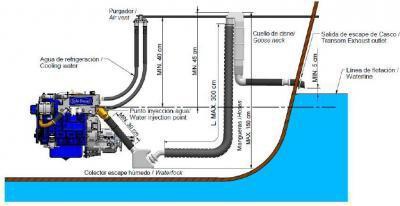

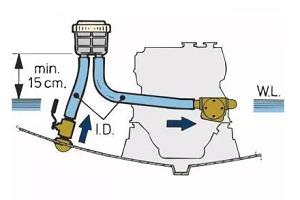

(wet exhaust system with waterlock and muffler).

A wet exhaust consists of the following components from start to finish:

Installation of a muffler is still an extra option. A muffling and flexible exhaust hose can also be used for wet exhaust systems; it can be attached using stainless-steel hose clamps.

Looking for advice on your exhaust system? Please do not hesitate to contact us, or visit our website for various parts.

Interested in a Polar Power DC Marine Generator? Please complete and email to siteinfo@shaw.ca the Polar Power Client generator worksheet below for a no-pressure quotation:

Click here for the Polar Power Client generator worksheet - Please complete this and email it to siteinfo@shaw.ca with your initial project inquiry
Click here to view the AC generator versus Polar Power DC generator comparison PDF document

Polar Power DC Generators are fully automated fuel powered battery chargers.
The Generator is supplied complete with the necessary microprocessor-based controls and software allowing the Generator to sense the battery state of charge and automatically start and stop.
NOTE: The maximum Amp output of the Polar Power DC Marine Generators is 360 Amps.

Polar Power DC diesel generators can output from 12 Volts to 550 Volts DC. To accomplish this Polar has a variety of alternator windings and models to choose from. This also gives Polar generators the ability to offer specific Voltage ranges at different engine speeds. The higher the Volatge that you decide on the greater will be your choice for engine speeds. Higher Voltages are beneficial to reduce the need for higher currents.
