MARINE,
RV & OFF GRID MPPT SOLAR CHARGE CONTROLLERS FOR USE WITH
LITHIONICS
LITHIUM-ION BATTERIES
|
|
|
Victron
Energy MPPT Solar Charge Controllers
These are fully programmable and compatible with
the Lithionics lithium-ion batteries.
|
|
Off Grid MPPT Solar Power Controller Page
Holiday Cabins, Residential, Marine, RV, Commercial
Applications and more!
Get
Lithium and Lithionics Battery have found that several
Solar PV Charge Controller Models will meet our lithium
ion battery solar power charging requirements including
OutBack
Power MPPT solar PV charge controllers, Victron
Energy BlueSolar and SmartSolar MPPT solar charge
controllers.
We also offer Gensaun solar charge controllers and
MidNite Solar "The Kid"
and "Brat" charge controllers.
For all your solar power system needs, give us a call
at: 604-510-0800.
IMPORTANT
NOTE: As of June 2019, Lithionics recommends setting
the Bulk/ Absorb Charge Setting on MPPT Solar Charge
Controllers at 14.4 Volts and the Float Charge Setting
at 13.4 Volts for Lithionics 12 Volt battery systems.
Custom
Solar Charge Controller Rack for 44' Jeanneau
Sailboat Solar Project:
A difficult part of this installation was that
there was a very small odd-sized space for the
solar charge controllers. The only way we could
fit in all 9 Victron Energy and Genasun MPPT solar
charge controllers was to design and fabricate
this custom aluminum rack that bolts together
to allow easy installation. |
|
|
|
The
typical Solar Energy System has several components
(Click on the Links):
|
Links
to our Solar and Off-Grid Energy Project pages:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Victron
Energy MPPT Solar Charge Controllers:
Victron
Energy offers a great lineup of super efficient and
reliable MPPT solar charge controllers. We have many
of these Victron units working well in our Client's
Marine and RV projects. These
devices have many great features and options including:
- Can
be programmed with the Lithionics lithium-ion
battery optimal charge settings
- Choose
from 12 Volt, 24 Volt or 48 Volt models
- 97%
efficient
- Can
also be used with lead-acid or AGM batteries
- Choose
from the economical "BlueSolar"
models or the advanced "SmartSolar"
models that have Bluetooth connectivity
to Android and iPhone smartphones for real-time
energy reporting
- Compact
and lightweight
- Can
be networked with other Victron Energy devices
- Some
of the larger models can come with MC4 solar power
cable plugins
- We
can supply and ship these solar controllers from
our distributors in Canada or the USA to save
you shipping costs and time
- We
can also supply you with solar power cabling,
MC4 connector assemblies/ MC4 crimping tools as
well as the required fuses (go between the solar
panels and MPPT charge controller) and resettable
circuit breakers (go between the MPPT charge controller
and the battery system) that make up part of the
solar circuit.
- Contact
Pinnacle Innovations at 604-510-0800 or by email
at siteinfo@shaw.ca
for more information/ to order.
|
|
|
|
Victron
Energy MPPT Solar Charge Controllers: We have
several different suppliers both in Canada and
the USA with varying prices so where possible
we will do our best to get you the best price
- which can be lower or higher than shown depending
on the distributor used.
Below is a list of some of the more popular
Victron MPPT solar charge controllers that we
offer WITHOUT the Bluetooth feature:
|
Price
($USD)
|
|
BlueSolar
75/15
Can handle 220 Watts of solar panels in
12 Volt configuration, 440 Watts of solar panels
in the 24 Volt configuration. 97% efficient.
Dimensions: 100 x 113 x 50 mm. Weight: 0.6kg
|
From
$104.00
|
|
|
|
|
BlueSolar
100/30
Can handle 440 Watts of solar panels in
12 Volt configuration, 880 Watts of solar panels
in the 24 Volt configuration. 97% efficient.
Dimensions: 130 x 186 x 70 mm. Weight: 1.3kg
|
From
$231.00
|
|
|
|
|
BlueSolar
100/50
Can handle 700 Watts of solar panels in
12 Volt configuration, 1,400 Watts of solar
panels in the 24 Volt configuration. 97% efficient.
Dimensions: 130 x 186 x 70 mm. Weight: 1.3kg
|
From
$347.00
|
|
|
|
|
BlueSolar
150/45-TR
Can handle 650 Watts of solar panels in
12 Volt configuration, 1,300 Watts of solar
panels in the 24 Volt configuration and 2,600
Watts in the 48 Volt configuration. 97% efficient.
Dimensions for conventional connections model:
185 x 250 x 95 mm. Weight: 3kg
Dimensions for MC4 connections model: 215 x
250 x 95 mm. Weight: 3kg
|
From
$520.00
Contact
Pinnacle Innovations at 604-510-0800 or by
email at siteinfo@shaw.ca
for more information/ to order
|
|
Popular
SmartSolar & BlueSolar 100/30
|
BlueSolar
150/100-MC4
Also available with conventional cable
plugins
|
|
|
|
Perfect
for 48 and 51 Volt lithium-ion battery
systems
|
|
|
|
|
|
Victron
Energy MPPT Solar Charge Controllers: We have
several different suppliers both in Canada and
the USA with varying prices so where possible
we will do our best to get you the best price
- which can be lower or higher than shown depending
on the distributor used.
Popular Victron MPPT solar charge controllers
that we offer WITH the "Bluetooth"
data reporting App:
|
Victron
MPPT Solar Charge Controller Price*
|
SmartSolar
75/15
Can handle 220 Watts of solar panels in
12 Volt configuration, 440 Watts of solar
panels in the 24 Volt configuration. 97% efficient.
Equipped
with "Bluetooth" Smartphone App
so that you can:
Dimensions: 100 x 113 x 50 mm. Weight: 0.6kg
|
From
$139.00 USD
|
|
|
|
SmartSolar
100/30
Can handle 440 Watts of solar panels in
12 Volt configuration, 880 Watts of solar
panels in the 24 Volt configuration. 97% efficient.
Equipped
with "Bluetooth" Smartphone App
so that you can:
Dimensions: 130 x 186 x 70 mm. Weight: 1.3kg
|
From
$266.00 USD
|
|
|
|
SmartSolar
100/50
Can handle 700 Watts of solar panels in
12 Volt configuration, 1,400 Watts of solar
panels in the 24 Volt configuration. 97% efficient.
Equipped
with "Bluetooth" Smartphone App
so that you can:
Dimensions: 130 x 186 x 70 mm. Weight: 1.3kg
|
From
$381.00 USD
Contact
Pinnacle Innovations at 604-510-0800 or by
email at siteinfo@shaw.ca
for more information/ to order
|
|
|
|
SmartSolar
150/35
Can handle 500 Watts of solar panels in
12 Volt configuration, 1,000 Watts of solar
panels in the 24 Volt configuration and 2,000
Watts for 48 Volt battery systems. 97% efficient.
Equipped
with "Bluetooth" Smartphone App
so that you can:
Dimensions: 130 x 186 x 70 mm. Weight: 1.3kg
|
From
$381.00 USD
Contact
Pinnacle Innovations at 604-510-0800 or by
email at siteinfo@shaw.ca
for more information/ to order
|
|
|
|
Solar
Charge Controller Circuit Breakers - required
both between the solar panels and the MPPT
solar charge controller and between the MPPT
solar charge controller and the battery system.
DC
Voltage Rating - 150VDC
Wire Size Range - 14 to 6 AWG
Width -0.5 inches (13mm)
Number of poles - 1
Listed for US & Canada when used in MidNite
Solar enclosures
10,000 AIC
MidNite
Solar DC Circuit Breakers:
From $27.90 USD
Breaker Values Available:
- MNEPV1:
1 Amp
- MNEPV2:
2 Amps
- MNEPV3:
3 Amps
- MNEPV4:
4 Amps
- MNEPV5:
5 Amps
- MNEPV6:
6 Amps
- MNEPV7:
7 Amps
- MNEPV8:
8 Amps
- MNEPV9:
9 Amps
- MNEPV10:
10 Amps
- MNEPV12:
12 Amps
- MNEPV15:
15 Amps
- MNEPV20:
20 Amps
- MNEPV30:
30 Amps
- MNEPV40:
40 Amps
- MNEPV50:
50 Amps
- MNEPV60:
60 Amps
- MNEPV63:
63 Amps
MidNite
Solar "MNBABYBOX" DC Circuit Breaker
Box:
From $74.98 USD
More
solar circuit breaker options etc. visit our
battery hardware page...
|
MidNite
Solar DC Circuit Breakers:
From $27.90 USD
MidNite
Solar "MNBabyBox" DC Circuit Breaker
Box:
From $74.98 USD
We
can also install cable glands at a small additional
fee.
|
|
We
often use the Perfect Switch POWER-GATE Single
Rectifier Isolators on the solar charge controller
output to the battery bank. This helps to elimninate
"charging conflicts" that can occur
when the solar array is charging as well as
some other charging device like a battery charger,
generator and so on. These devices are 100%
solid state and 99.9% efficient and act as a
"perfect diode" that only allows current
to flow in one direction. As most solar charge
controllers require the ability to "sense
Voltage" bi-directionally along the positive
power cable, we will supply a 5k Ohm "Resistor
Bridge" that allows the Voltage Sensing
but only allows a fraction of an Amp of current
to flow across it. Add $20.00 USD for the resistor
bridge to the cost of the Perfect Switch device.
Click
here to visit the Perfect Switch webpage...
|
|
|
|
|
| |
|
MidNite
Solar and Other Solar Parts |
Solar
Part Price*
|

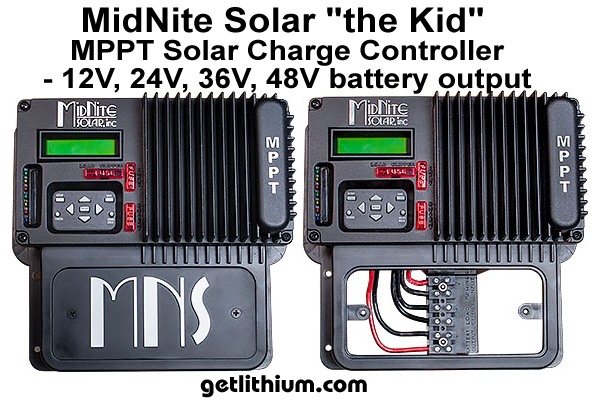

MidNite
Solar "The Kid" MPPT solar charge
controllers.
These are high quality solar charge controllers
that work well with lithium-ion batteries
as well as lead-acid or AGM batteries.
Ideal
for small renewable energy systems, the
KID is a 30 Amp MMPT charge controller
that allows solar arrays to be wired at
up to 150VDC. That's three 250 Watt panels
in series in 3 HES-150's in a 12 Volt
system. The KID features bulk, absorption
and float modes, as well as an equalize
mode for periodic battery maintenance.
The KID allows for true input paralleling.
As your power needs grow, add more modules
to the array and a second KID! This will
give twice the power from a single array.
Also can be used for load control, lighting
control and Includes a battery status
display. For 12, 24, 36 and 48 Volt systems.
|
$597.00
CAD
Contact
Pinnacle Innovations at 604-510-0800
or by email at siteinfo@shaw.ca
for more information/ to order
|
|
|
| MidNite
Solar "Brat" PWM solar charge
controllers. |
$172.00
CAD
|
|
|
|
Need
Inline Fuses, Resettable Breakers or other
solar hardware for your solar system purchase
through us?
We can supply you with all the fuses and
circuit breakers that are required between
the solar panels and the solar charge
controller as well as the the fuses and
circuit breakers that are required between
the charge controller and the battery
system.
|
Resettable
Circuit Breakers are a safe and
convenient way to protect the solar
output to the battery. If you need to
do electrical maintenance on your system
you can just press the tab and it disconnects
the breaker and power to the battery.
For
12, 24 and 48 Volt systems. Available
models:
-
30
Amps: 82517 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
50
Amps: 82519 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
60
Amps: 82520 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
80
Amps: 82521 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
100
Amps: 82522 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
120
Amps: 82523 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
-
150
Amps: 82524 Surface Mount Thermal
Circuit Breaker
-CE Marked, Made in USA
|
$59.98
CAD
|
|
|
Inline
Fuses are a safe and convenient
way to protect the solar panel output
to the solar charge controller. If you
need to do electrical maintenance on
your system you can simply remove the
tubular fuse inside the weatherproof
holder to disconnect power to the solar
charge controller.
Din
Rail mount solar fuses. Rated up to
600 Amps. Accept tubular glass fuses.
Covers pop open for easy access to fuses.
$44.00 USD each fuse holder with 1 fuse.
Extra fuses are $6.50 USD each.
In
most cases, we recommend actually using
the resttable DC
solar circuit breakers shown above on
this page as it is fast and asfe
to turn off the solar power when you
are working on the DC electrical system.
|
|
|
|
|
|
OutBack
Power Systems MPPT Solar Charge Controllers
|
|
We
are proud to offer US-Made MPPT Solar Charge
Controllers by OutBack Power Systems.
OutBack
Power FLEXmax Model Features:
|
|
OutBack
FLEXmax EXTREME
FM Extreme-150Vdc Price: $2,099.00 CAD
OutBack
FLEXmax 80
FM80-150Vdc Price: $889.00 CAD
OutBack
FLEXmax 60
FM60-150Vdc Price: $787.00 CAD
Notes:
Shipping is extra
Volume Discounts Available
Call
604-510-0800 To Order
or Email Us: siteinfo@shaw.ca
|
|
FLEXmax
Description
The
FLEXmax family of charge controllers is the
latest innovation in Maximum Power Point Tracking
(MPPT) charge controllers from OutBack Power
Systems. The innovative FLEXmax MPPT software
algorithm is both continuous and active, increasing
your photovoltaic array power yield up to 30%
compared to non-MPPT controllers. Thanks to
active cooling and intelligent thermal management
cooling, both FLEXmax charge controllers can
operate at their full maximum current rating,
60 Amps or 80 Amps respectively, in ambient
temperatures as high as 104 degrees F (40 degrees
C).
Included
in all of the FLEXmax Charge Controllers are
the revolutionary features first developed by
OutBack Power, including support for a wide
range of nominal battery voltages and the ability
to step-down a higher voltage solar array to
recharge a lower voltage battery bank. A built-in,
backlit 80 character display shows the current
status and logged system performance data for
the last 128 days at the touch of a button.
The integrated OutBack network communications
allows FLEXmax series Charge Controllers to
be remotely programmed and monitored via a MATE
system display and provides unrivaled complete
system integration.
FLEXmax
MPPT Charge Controllers are the only choice
when you demand a high performance, efficient
and versatile charge controller for your advanced
power system.
Click
here for the full line of OutBack Power products...
|
|
|
|
|
|
Click
here for more OutBack Power Products...
|
|
OutBack
Power "E-Panel"
|
|
OUTBACK POWER'S E-PANEL
Take
much of the guesswork out of your Off-Grid/
Grid/ Solar Energy System with a completely
pre-wired and tested "E-panel",
complete with:
-
Inverter/ Converter/ Charger: your
choice of many of OutBack's inverter-converters
and inverter-chargers including
the popular VFX models.
- Control
Module: Choose from OutBack's MATE,
MATE2 and MATE3 control and display
modules. These are needed to be
able to program and define many
settings such as charging voltages
and other functions.
- Government
Certified Electrical Box
- Circuit
Breakers and other necessary components.
You
can also order other necessary components
required for a complete hook-up and
installation such as DC Power Cables,
Lithium ion batteries for electrical
energy storage, Solar Panels and Solar
Charge Controllers and much more...
For
more information or to order,
Call 604-510-0800
or Email Us: siteinfo@shaw.ca
|
|
|
|
|
|
FLEXpower
TWO
Fully Pre-Wired Single Inverter System
System
Highlights:
- Includes
two inverter/chargers, AC and
DC wiring boxes, a MATE3, HUB,
and Surge Protector
-
Equipped with battery and PV array
breakers
-
Input-Output-Bypass Assembly
- Additional
AC breakers
- Components
carry all of the necessary ETL
Certifications
DESCRIPTION
The new FLEXpower TWO System accommodates
all of the essential protective devices
in an easy-to-install, fully pre-wired
and factory tested dual inverter system.
The FLEXpower TWO is ideal for applications
with medium sized power requirements
such as homes, light commercial or
larger backup power systems. Utilizing
a compact design and an easy-to-install
mounting plate, the FLEXpower TWO
System can be mounted in either a
horizontal or vertical orientation
to allow installation in more space-limited
locations and is designed for quick
installation, saving both time and
money.
The
FLEXpower TWO includes two inverter/chargers,
AC and DC wiring boxes, a MATE3, HUB,
Surge Protector, charge controllers
and DC system monitoring, while maintaining
a small system footprint.
The
FLEXpower TWO System is also equipped
with battery and PV array breakers,
an Input-Output-Bypass Assembly, mounting
locations for AC GFCI Type B style
outlets and additional AC breakers.
FLEXpower TWO components carry all
of the necessary ETL Certifications
allowing for a code compliant installation
that saves both time and money while
still looking great.
The
OutBack Power FLEXpower TWO System
is the only choice when you need a
fully integrated, true sine wave,
reliable power system.
Pricing:
From $9,199.00 USD
|
|
|
LITHIONICS
BATTERY SOLAR POWER CONTROLLER DETAILS
All 12 Volt Lithionics
Battery Lithium ion Batteries need to be charged
between 14.4 Volts and 14.6 Volts. The Batteries
also need to "Float Charge" at 13.4
Volts.
Not
all Solar Controllers have safety features or
adjustable voltage settings. Typically, only
3-Stage Solar Controllers with "Equalization"
can be adjusted to the Voltages listed above.
|
Lithionics
Battery Lithium ion Batteries are 97%
Efficient with Solar Power Charging!
Compare that to only 55% to 85% Solar
Power Efficiency with Lead-acid Batteries!
|
Lithionics
Battery Lithium ion Batteries Charge 3
to 4 Times FASTER with Solar Power Charging
than other forms of batteries.
|
|
|
MPPT Solar Charge Controllers
- by Blue Sky Energy
Unfortunately
due to supply issues we no longer off Blue
Sky Energy equipment. Try the Victron Energy
MPPTs on our Solar Controller webpage
|
|
|
|
|
|
|
|
|
|
Be sure to check our "Overview
of our Lithium ion Batteries" page.
There
you can find out about all the advantages of using our
Lithium ion Batteries from Lithionics Battery, as well
as determine what battery will replace your existing lead-acid
battery.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
~ Deep Cycle
Lithium
~ Engine Cranking
Lithium
Batteries
~ RV Lithium
Batteries
~ Marine Lithium
Batteries
~ Large Scale
Lithium-ion
Batteries
~ Solar Power
Lithium
Batteries
~ Truck Industry
Lithium
Batteries
|
~ Lithionics
Battery
NeverDie BMS
~ Dual Channel
BMS
~ State of Charge
Monitoring
Systems (SOC)
~ CANbus
Controls
~ Alternator
Controls |
~ Sailboat/ Yacht
Inboard &
Outboard
Electric
motors
~ 5hp, 9.9hp, 14hp,
20hp, 30hp &
50hp electric
outboard boat
motors
~ 6hp, 12hp, 20hp,
40hp, 70hp and
100hp electric
inboard boat
motors
~ Lithium-ion
and Victron
Energy AGM
Batteries |
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
Cruisers
~ Offshore
Racing
Boats
~ Yachts
~ High Output
Alternators
with
External
Wakespeed
or Balmar
Voltage
Regulators |
~ Class A, B & C
Recreational
Vehicle Lithium-ion
Batteries
~ Mercedes Benz
Sprinter Van
Lithium-ion
Batteries
~ Deep Cycle &
Engine Cranking
Lithium-ion
Battery Systems
~ High Output
Alternators with
External
Wakespeed
or Balmar Voltage
Regulators
|
|
|
MPPT
Solar Charge Controllers and Lithium ion batteries for sale
across the USA and Canada including British Columbia (BC),
Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario
(ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS),
Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory
(YT), Northwest Territory (NT), Nunavit (NU) and Iqaluit.
Copyright getlithium.com, Lithionics Battery and Respective
Copyright Holders 2022. All rights reserved.
|
|
 |
|
 |
|
|
