ELCO ELECTRIC OUTBOARD MOTOR: EP-14
COMPLETE 14HP ELECTRIC OUTBOARD BOAT MOTOR SYSTEM

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
Pure Electric Outboard Motors/ Electric Marine Propulsion Systems
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

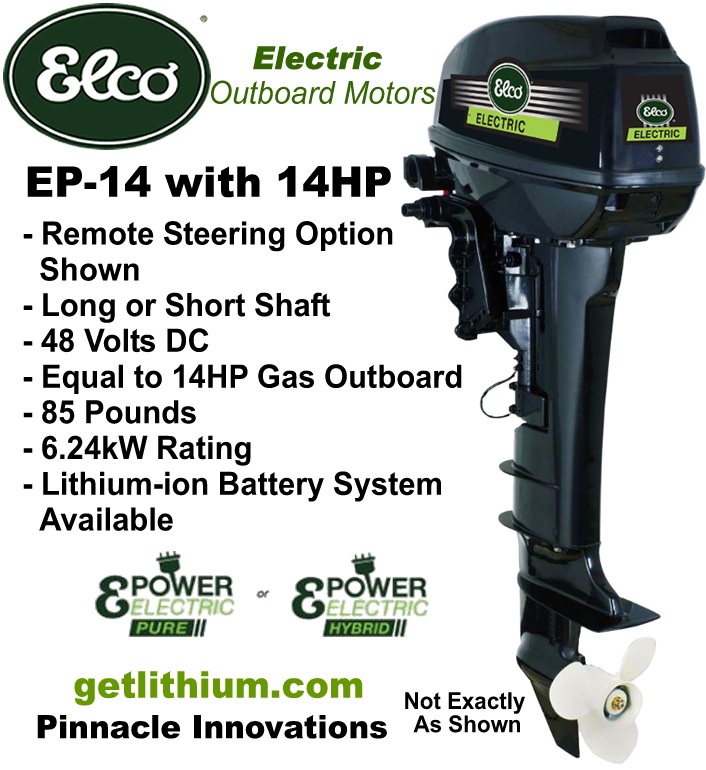

Elco Motor Yachts 14hp electric outboard marine motor

The Elco EP-14 is a powerful electric marine propulsion system - perfect for pontoon boats, small boats and sailboats. Combining affordability and environmentally clean and efficient marine propulsion. It is an easy refit or an even easier option for new boats under construction - these electric outboards are made to fit a standard 20 inch transom.

Most of the Elco outboards run at 4,500-5,000 RPM with a 2-1 gear reduction ratio (the EP50 can run up to 6,000 RPM). The lower leg unit is a proprietary Elco part with a single gear in the gearbox. Compareable gas outboards typically have several gears in their gearbox so with just 1 gear the Elco is typically more reliable. About the only part that can be sourced through a Yamaha outboard parts center or dealer is the water pump's impeller. If after several years of use and you ever find vibration occurring and you are certain that you have never grounded the leg/ hit it on a hard object, then the first thing that should be checked is the leg's oil level. If that is OK, then the second thing we should look at through a reputable marine mechanic is the water pump's impeller. Water pump impellers do not last forever and can be damaged quickly if the motor is run out of water or if the water intake becomes blocked.

The Elco outboard marine motors come ready to connect and run - the leg is filled with gear oil and the motors have been pre-programmed and test run at the factory for 1 hour.

How do I choose - Long Shaft or Short Shaft?
Take a tape measure and measure from the top of the transom mounting plate that we will clamp the motor to and measure down to the water line and add 1 inch or so.

  • If the measurement is 17.5 inches choose the Short Shaft outboard
  • If the measurement is 22.5 inches choose the Long Shaft outboard

Battery System:
Please note that the Elco motors as priced do not include a battery system. Customers can source their own deep cycle battery system or we can offer a variety of battery systems. More information below...

These Elco 48 Volt electric outboard motors are the affordable, relaible alternative to the Torqeedo electric outboard marine engines...

Click here for the Elco electric outboard motor spec sheet
Suggested
Horsepower
Replacement
Range
Elco Electric Motor System
Details
Graphic
(not exactly as shown)
Pricing
(all figures USD)
14
Horsepower
Elco EP-14

Elco Motor Yachts 14hp electric outboard marine motor

Elco Outboard Motor Manual:
Click here to view the Elco Electric Outboard Motor Manual

From $4,855.00*
for motor with tiller controls

Add $448.00 USD for basic remo
te throttle lever option.

  Boat size ranges Pontoon boats, small boats, sailboats
  Horsepower gas equivalency 14 h.p.

* Price is for the tiller steering/ throttle.
Price does not include battery system or shipping.

EP-14 MOTOR/ SIZING SPECIFICATIONS
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Note: When in doubt, choose the next size motor up.
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Input Power
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
6.48 kW
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Comparable gas outboard rating
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
14 HP
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Propeller
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer 3 blade 9 1/4" x 10"
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Static thrust
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
204 Pounds
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

Voltage

Batteries:
Victron AGM battery system minimum size is 130 Amp hours. Victron AGM batteries with 130 Amp hours are $399.50 USD each or the 165 Amp hour models are $472.32 USD each (4 needed) and the 220 Amp hour model is $598.00 USD each (Four 12 Volt needed).

Lithium-ion battery system minimum size is 110 Amp hours capacity. We can connect several battery packs in parallel to offer longer battery power only running time.

View the higher performance Lithionics Battery lithium-ion battery options...

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

48 Volts DC
This motor needs a 48 Volt battery system sold separately.

Lithionics 51 Volt 275 Amp hour lithium-ion battery system for electric marine propulsion.

Sample Lithionics Battery 51 Volt 275 Amp hour lithium-ion battery

Perfect for the EP 9.9, EP 14 and EP 20 outboards

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Maximum current
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
135 Amps DC
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Motor
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Brushless PMAC
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Cooling system
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Water cooled
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Control system
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Throttle & remote steering control/ tiller option available
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Remote control
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Side mount, 7 pin cable for throttle/ direction
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Optional remote extension cables
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Yes, 8 foot lengths for $218.75 USD each
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Lower unit gear ratio
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
2.08:1 (27/13)
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Gear oil capacity
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
8.5 ounces
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Transom Height
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Long Shaft: 22.5 inches
Short Shaft: 17.5 inches
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Trim and/or tilt
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Manual
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Overall short shaft (height, width, length)
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
43" x 11" x 18.5"
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Overall long shaft (height, width, length)
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
46" x 11" x 18.5"
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Weight
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
85 Pounds
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Motor Price with Tiller Control Option
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
From
$4,855.00 USD*
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Options:
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
1 - Long or Short Shaft
2 - Remote Steering or Tiller Steering.

Add $448.00 USD for basic remo
te throttle lever option that mounts vertically beside the driver seat.
3. Top-mount remote throttle.

Add $646.00 USD for the single top-mount throttle as shown in the photo below. Dual top-mount throttle also available for twin outboards/ twin inboards for $1,362.00 USD.
3. Lithium-ion Battery Packs/ Charging Equipment
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

175 Amp Blue Sea Class T fuse with fuse holder:
Add $142.49 CAD for the fuse holder plus shipping. As there is a global shortage of Class T fuses please Contact Us for price and availability of the Class T fuse itself that you need. Ships from Pinnacle Innovations in Vancouver, Canada.

This is required and installs on the positive power cable between the battery system and the Elco outboard motor.

We do not require our customers to buy this special extra safe ABYC approved fuse assembly from Pinnacle. It is available through Blue Sea Marine Dealers and the part numbers are 5113 and 5007100.

Blue Sea Marine Class T fuse and fuse holder
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

Panther Electric Hydraulic Model 40 Trim and Tilt 55-0040

This is an optional part that many Elco outboard motor owners opt for on the smaller motors when they operate in shallow waters, frequently make beach landings and/ or when they want to be easily able to lift the motor out of the water.

In addition, the Panther system can make installing the Elco outboards easier on some larger boats that may have a flat rear transom not necessarily designed for outboard motors.

This trim and tilt is designed specifically for the weekend fisherman. The Model 40 is a heavy-duty, fabricated aluminum bracket. Holds 2 and 4 stroke motors up to 150 lbs. Its powerful electro-mechanical actuator provides automatic trim and tilt with the push of a button. Bracket comes with electrical relay and 2-button switch with a 12' power cord that connects to a 12 Volt battery system.

If needed, we can provide a Victron Energy Orion 48 Volt to 12 Volt DC converter at additional cost so that you can power the Panther with the Elco motor's 48 Volt DC battery system.



Do you need a "Series Battery Connection Harness"?
Pinnacle Innovations will be more than happy to supply you with a high quality Custom Made Series Battery Wiring Harness using Amercian made tinned copper marine power cabling, tinned copper marine cable ends with round eyelet holes, adhesive backed heavy duty marine heat shrink tubing and the matching Elco motor quick disconnector cable end.

We also only use the much higher rated Class T fuse sets made by Blue Sea Systems instead of ANL or MEGA fuses (the ANL and MEGA Fuse holders are primarily plastic, can overheat and come apart causing a dangerous situation). We can also make the cables whatever length that you may need and if you need the cables to be longer than the standard 82" we can also look at using larger diameter power cable.
Available for Both Elco Inboards and Outboards and This Kit Ships from Pinnacle Innovations, Langley, BC, Canada.

Sample "Base" Battery Wire Connection Harnesses:

Sample base high quality Elco EP14 and EP20 electric outboard motor series battery connection wire harness kit with high quality tinned copper marine cable and ends as well as Blue Sea Systems Class T fuse that is ABYC approved for use in electric marine propulsion.



Sample base high quality Elco EP50 electric outboard motor series battery connection wire harness kit with high quality tinned copper marine cable and ends as well as Blue Sea Systems Class T fuse that is ABYC approved for use in electric marine propulsion.

Priced from $199.00 USD plus the cost of the Class T fuse Holder and Class T Fuse.

Contact Us to Add to Your Elco Order



Elco's Supplied Quick Connection System:
Elco uses two fairly short piceces of 2 AWG tinned copper marine power wire
about 8" long between the motor head and the quick connector. On the EP14, EP20, EP30 and EP50 motors, this quick connector is rated for 350 Amps. The brand name is "Anen" so make sure you use the matching brand/ size.

Your motor will ship with the one blue connector and two short power cables attached to the motor, plus a matching blue connector with two tinned copper cable end lugs that you can crimp to your power cabling.

In some installations where cables need to be longer than say 8 or 9 feet, we will use bigger power cable up to possibly 2/0 AWG.

Check out a couple pictures to the right and feel free to Contact Us if you have any questions.

Click for a larger image of the Anen brand quick connector

Click for an image of the Anen brand quick connector


elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Elco Outboard Installation/ Instruction/ Maintenance Manual:

Click here for the Elco electric outboard motor instruction manual
Click here for the Elco electric outboard motor instruction manual
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Click on the image for a larger Elco electric marine motor system image
Top-mount remote throttle.
Add $646.00 USD for the single top-mount throttle as shown in the photo
Click on the image for a larger Elco electric marine motor system image
Wall-mount remote throttle.
Basic remote throttle lever option that mounts vertically beside the driver seat (can mount on either side of the boat).

Do you need a high Voltage DC Disconnect Switch(s)?

According to the ABYC Marine Electrical Code Book, the answer is "YES". For all electric propulsion maritime vessels it is required to have a manual disconnect switch for the motor/ battery system that can handle both the Voltage of the Elco motor system as well as the maximum Amperage of the Elco motor.

If you would like, we can also supply you with 1 or 2 of the appropriate DC Disconnect Switches to make your Elco motor system installation complete and up to ABYC Standards. The actual ABYC Code stipulates that we in fact should have two DC disconnects - one for the main positive and one for the main negative power cables.

48 Volt Model: $74.99 USD

Click here for a larger image of the 48 Volt marine DC Disconnect Switch that is made by Blue Sea Systems

ELCO EP SERIES WARRANTY:
Limited Warranty, 2 years labour, 3 years parts
NOTE: Do not run the motor out of the water - it will damage the water pump and void your warranty.

Battery System:
Please note that the Elco motors as priced do not include a battery system. Customers can source their own deep cycle battery system or we can offer a variety of battery systems:

  • Lead-acid batteries: lowest cost, heavy, bulky, require maintenance, slow recharging, lowest life expectancy/ cycle life (up to about 600 cycles but usually start losing capacity after about 300 cycles)
  • AGM batteries: moderate cost, heavy, bulky, require less maintenance, slow recharging, improved life expectancy/ cycle life (up to 1,000 to 1,200 cycles)
  • Lithionics lithium-ion batteries: best overall system with highest performance, next to zero maintenance, lightweight, fast charging, compact and exceptional life expecatncy - up to 5,800 cycles at 50% discharge rate. The only downside is these batteries cost significantly more than lead-acid batteries.

In order for us to specify and quote a battery system we ask that you provide us the following information:

  • For how many hours per day do you want to be able to cruise?
  • At approximately what % of full throttle do you expect to use on average?
  • What is the weight and size of your boat?
  • What are the physical dimensions of the battery area that you have?
  • Please tell us about the electrical outlet(s) you have access to to plug the battery charger into. Example: 110 Volt AC outlet on a 15 Amp circuit breaker 100 feet away from the boat.
  • Please let us know if you have any roof or deck space available for possible rigid or semi-flexible solar panels and the dimensions of such areas.

With this information we can then calculate the Amp hours of battery capacity required to give you the desired running time before recharging. Depending on your budget and other factors we can then quote you some battery options. Please keep in mind that to be able to run all day at a high percentage of throttle may require a substantial battery bank. For many small boats (under 25 feet) we can provide an economical battery system that can provide a few hours enjoyment but many small boats (such as a 10 foot tender boat) may not have enough available space or carrying capacity for a battery bank that can run the motor more than 1 or 2 hours at high throttle.

For applications that require longer running times the most economical way to go may be what we call a "hybrid-electric battery system" where we can decrease the size and cost of the battery system by adding a Polar Power DC diesel generator or other type of generator.

TROUBLESHOOTING - Elco Electric Outboard Motor Service Notes:
In the unlikely event that something goes wrong with the Elco electric inboard or outboard marine motor there are lights that flash on the electric controller (located under the engine cover on the top of the motor) and that tells us what is wrong. It really depends on what the controller tells us as to whether the motor can be repaired quickly and easily locally or if it needs to go back to Elco for repair.

In the rare event that your OUTBOARD motor is causing vibration after being operated for a long time (many, many outings or a period of years) the first thing that we would want to check is the lower leg's water pump impeller. Over long periods of time (or if you run the motor out of the water) the rubberized fins on the impeller can become damaged or worn. For both the Elco EP14 and EP20 there is a direct Yamaha replacement kit with part number 63V-W0078-01. This can be serviced by a marine outboard mechanic.

In the rare event that you strike the leg on a rock or something hard and vibration results, then it may be possible that the whole lower leg may need replacing on the outboard motor. Not to worry though, Elco has you covered with economical lower leg replacements and the price for the lower leg on the EP14, EP20 and EP30 hp is $1,190.00 USD.


Elco Inboard Motors: Please read the instruction manual on the inboards (click on PDF link below). We will help with a correct prop solution: we need the boat specs and what the diameter of the prop that the owner wants to use. It is very important that the pitch is correct other wise the motor will not function correctly - you can either go in over Voltage or under Voltage and you will not get the performance that you should from the motor and this can cause problems. There is a procedure that is in the manual for the inboards – you need to water test and take down the speed you are going and the rpms and the Amps the motor is pulling (all that is displayed on the display that come with the unit but you will have to use a hand held GPS to get the speed data) at first low speed, then half throttle and then full throttle. This will tells us if the pitch is correct and you are getting full Horsepower and reaching 1,500 RPM- 1,800 RPM is about the maximum for the Elco EP Inboards.

Click here for the Elco electric inboard motor instruction manual

See how easy it is to install the Elco electric outboard boat motors:

Call us to order or for more information on Elco Motor Yacht electric propulsion systems

POLAR POWER DC MARINE GENERATORS
Why choose Polar Power DC Diesel Generators?
Efficiency is the answer. These diesel generators are perfect for battery charging and can reduce the size and cost of the battery bank.
American made Polar Power DC diesel generators with 5kW to 25kW output or more. Perfect for use with Elco motors when long distance electric power is needed for mid-size boats.
Click here for Polar Power efficient American made DC marine diesel generators

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
OTHER ELCO ELECTRIC OUTBOARD MOTORS AVAILABLE:
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

Elco EP-20 electric outboard motor - Click for details on this 20 horsepower electric outboard engine...
Elco EP-14 electric outboard motor - Click for details on this 14 horsepower electric outboard engine...
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

With advances in lithium-ion battery technology provided by Lithionics Battery, we are now able to offer Complete Plug and Play Marine Electric Propulsion Systems. When purchasing an Elco E-Power System, you're not just receiving a motor, you're purchasing all the essential components to power the vessel with electric propulsion and we provide the Lithionics Battery lithium-ion batteries.

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerelco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
Elco EP Electric Outboard Boat Motor Benefits

Elco electric marine propulsion motors and system components No exhaust fumes produced
Elco electric marine propulsion motors and system components Quiet motor operation: Minimal noise pollution
Elco electric marine propulsion motors and system components Available with your choice of lithium-ion batteries
Elco electric marine propulsion motors and system components Very small carbon footprint if charged by the solar or wind power options
Elco electric marine propulsion motors and system components Cruise all day and charge the batteries overnight for just pennies
Elco electric marine propulsion motors and system components The motor fits most standard transom mounts without modifications
Elco electric marine propulsion motors and system components No need to winterize
Elco electric marine propulsion motors and system components Great reliability, go for long periods before scheduled maintenance
Elco electric marine propulsion motors and system components More than twice the cruising range than an equivalent diesel engine in a hybrid system
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer

Click here for more Elco electric marine engine photos..
Click here for more Elco electric marine engine photos...
Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
How long can I go without recharging?

Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
There are various factors in determining how far you can go before you need to recharge. Winds, tides, currents, weights, propeller type, vessel speed and battery size are some examples. With a generator on board running time can be extended or made continuous. Below is a graphical representation comparing Diesel fuel consumption for an Elco electric propulsion system using lead-type batteries versus a diesel engine. NOTE: With Lithionics Battery Lithium-ion batteries, the savings and ranges will be much greater.


For Lithionics Battery lithium-ion battery choices, refer to the Main Lithium-ion Battery page...

LITHIONICS LITHIUM-ION BATTERY SYSTEMS
Battery Model Number
Volts
Battery Weight
Amp Hours
Link
Price*
lithium batteries spacer GTO and GTX Series - high performance:

GTO 51V 100A-E1914-UL-Module

High Performance GTO Series 51.2 Volt 100 Amp Hour Lithionics Lithium Ion Battery

External Lithionics Battery NeverDie BMS Box Required

Great for ELCO 48 Volt Electric Outboard Motors

51.2 V

109 Lbs

100 AHr

Note: 1 Lithium Amp Hour = 3.5 AGM/ Lead Acid Amp Hours for our 48 Volt Lithium ion Batteries

Lithionics Battery GTO Series 51 Volt 100 Amp hour lithium-ion high performance lightweight battery module for RV, sailboats, yachts, marine, solar energy storage and more

$6,118.64 USD

GTX 51V275A-F25-System

Great for ELCO 48 Volt Electric Outboard Motors

51.2 V
Lithionics Battery lithium-ion batteries are 98% solar power charging efficient - click here to visit the Solar Power page...
275 AHr

Note: 1 Lithium Amp Hour = 3.5 AGM/ Lead Acid Amp Hours for our 48 Volt Lithium ion Batteries
Lithionics 51 Volt 275 Amp hour lithium-ion battery system for electric marine propulsion.
From $17,795.60 USD

lithium batteries spacer

lithium batteries spacer We can also supply high capacity 51 Volt (and higher Voltage) lithium-ion battery systems
lithium batteries spacer in any configuration including:

  • 51 Volts to 400 Volts lithium-ion battery banks with 110 Amp hour to 10,000 Amp hour for Solar power, Marine electric propulsion, Industrial Applications
Call Us for Pricing on Large Scale Lithium-ion Battery Banks:
604-510-0800
lithium batteries spacer
lithium batteries spacer
lithium batteries spacer
lithium batteries spacer
lithium batteries spacer
lithium batteries spacer
lithium batteries spacer


elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer

Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
What size Elco Electric Marine Motor is right for my boat?

Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
There is some overlap between motor and boat sizes so choosing the right size motor for you and your vessel can sometimes require some personal expertise to make the right choice. In selecting the correct size electric motor, some general tips are - in areas with strong tides and currents, choose the next larger size motor, and the same goes for weight - if your boat is heavy for its length, choose the next size up.

Elco Motor Yacht has also developed a robust and easy motor coupling system to allow for twin or triple motor installations. This can be used when a vessel exceeds 85 feet or if you need a faster cruising speed. Please contact us about the motor coupling option by email.

The table below serves a good starting point for most boaters. The table also gives boaters an idea of what sort of investment they will be looking at.

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacerCall us to order or for more information on Elco Motor Yacht electric propulsion systems

NOTES:
Elco electric marine propulsion motors and system components *Prices subject to change. Prices do not include freight/ freight related charges or currency charges.
Elco electric marine propulsion motors and system components *2.25% Cash Discount offered for Cash, Cheque or Debit Card purchases.
Elco electric marine propulsion motors and system components Prices are for a complete Elco Electric Propulsion System including motor,
throttle (speed controller), charger, switches,
E-Gauge IV and prewired 15 foot wiring harness.
Elco electric marine propulsion motors and system components Additional options such as E-Gauge VII upgrade, motor couplers and lithium-ion batteries cost extra.

Elco electric marine propulsion plug and play sustem

elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer


Elco motor yachts electric marine propulsion motor system for sailboat, yacht and boat spacer
Questions?
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
Please feel free to Contact Us about the great line of Elco Motor Yacht electric marine propulsion systems. You can also email us directly
by email.

Call us to order or for more information on Elco Motor Yacht electric propulsion systems

Return to the Elco Electric Marine Motor Main Page...
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer


elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
elco motor yacht electric dc marine motor propulsion system and hybrid diesel-electric marine engine system for sailboats and yacht spacer
  lithium battery spacer
~ Deep Cycle
lithium battery spacer Lithium
~ Engine Cranking
lithium battery spacer Lithium
lithium battery spacer Batteries
~ RV Lithium
lithium battery spacer Batteries
~ Marine Lithium
lithium battery spacer Batteries
~ Large Scale
lithium battery spacer Lithium-ion
lithium battery spacer Batteries
~ Solar Power
lithium battery spacer Lithium
lithium battery spacer Batteries
~ Truck Industry
lithium battery spacer Lithium
lithium battery spacer Batteries
lithium battery spacer
~ Lithionics
lithium battery spacer Battery
lithium battery spacer NeverDie BMS
~ Dual Channel
lithium battery spacer BMS
~ State of Charge
lithium battery spacer Monitoring
lithium battery spacer Systems (SOC)
~ CANbus
lithium battery spacer Controls
~ Alternator
lithium battery spacer Controls
lithium battery spacer
~ Sailboat/ Yacht
lithium battery spacer Inboard &
lithium battery spacer Outboard Electric
lithium battery spacer motors
~ 5hp, 9.9hp, 14hp,
lithium battery spacer 20hp, 30hp &
lithium battery spacer 50hp electric
lithium battery spacer outboards
~ 6hp, 12hp, 20hp,
lithium battery spacer 40hp, 70hp and
lithium battery spacer 100hp electric
lithium battery spacer inboards
~ Lithium-ion
lithium battery spacer and Victron
lithium battery spacer Energy AGM
lithium battery spacer Batteries
lithium battery spacer
~ Sailboats
~ Ski Boats
~ Bass Boats
~ Sport
lithium battery spacer Cruisers
~ Offshore
lithium battery spacer Racing
lithium battery spacer Boats
~ Yachts
~ High Output
lithium battery spacer Alternators
lithium battery spacer with
lithium battery spacer External
lithium battery spacer Wakespeed
lithium battery spacer or Balmar
lithium battery spacer Voltage
lithium battery spacer Regulators

lithium battery spacer
~ Class A, B & C
lithium battery spacer Recreational
lithium battery spacer Vehicle Lithium-ion
lithium battery spacer Batteries
~ Mercedes Benz
lithium battery spacer Sprinter Van
lithium battery spacer Lithium-ion
lithium battery spacer Batteries
~ Deep Cycle &
lithium battery spacer Engine Cranking
lithium battery spacer Lithium-ion
lithium battery spacer Battery Systems
~ High Output
lithium battery spacer Alternators with
lithium battery spacer External Wakespeed
lithium battery spacer or Balmar Voltage
lithium battery spacer Regulators

lithium battery spacer
~ Email Us

~ Hours
~ Address
~ About
lithium battery spacer Pinnacle
lithium battery spacer Innovations

lithium-ion batteries spacer
Elco Motor Yachts EP14 48 Volt DC 14 horsepower electric outboard motor for small boats, sailboats and yachts for sale across Canada in British Columbia (BC), Alberta (AB), Saskatchewan (SK), Manitoba (MB), Ontario (ON), Quebec (QC), New Brunswick (NB), Nova Scotia (NS), Prince Edward Island (PEI), Newfoundland (NL), Yukon Territory (YT), Northwest Territory (NT), Nunavit (NU), Iqaluit, USA. USA & International Orders are also possible.
lithium-ion batteries spacer

Copyright getlithium.com, Lithionics Battery and Respective Copyright Holders 2022. All rights reserved.
lithium-ion batteries spacer
lithium-ion batteries spacer
lithium battery website spacer battery spacer
lithium battery website spacer right
